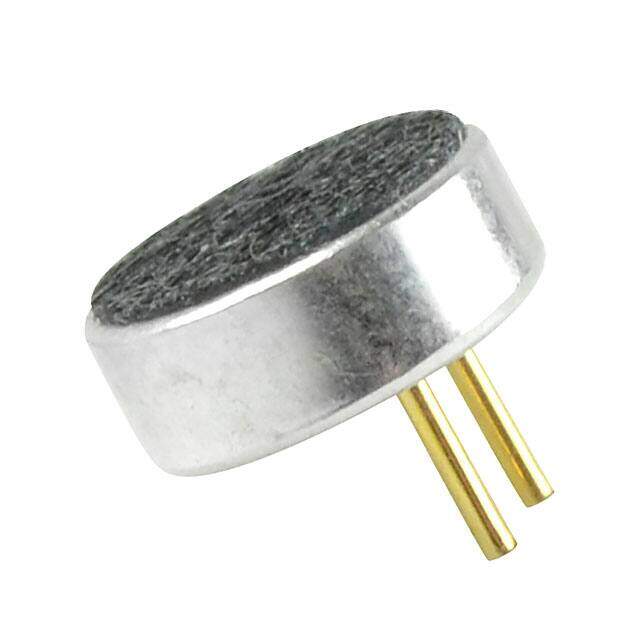

CMC-6022-42P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -42DB 6MM D
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.024062
≥1 USD $1.024062
≥200 USD $0.396496
≥500 USD $0.383367
≥1000 USD $0.375489
Inventory: 7596
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.094 2.40mm
Technical
S/N Ratio 58dB
Port Location Top
Sensitivity -42dB ±3dB @ 94dB SPL
Frequency Range 20Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhm
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.236Dia 6.00mm
Series CMC
Published 2017
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
