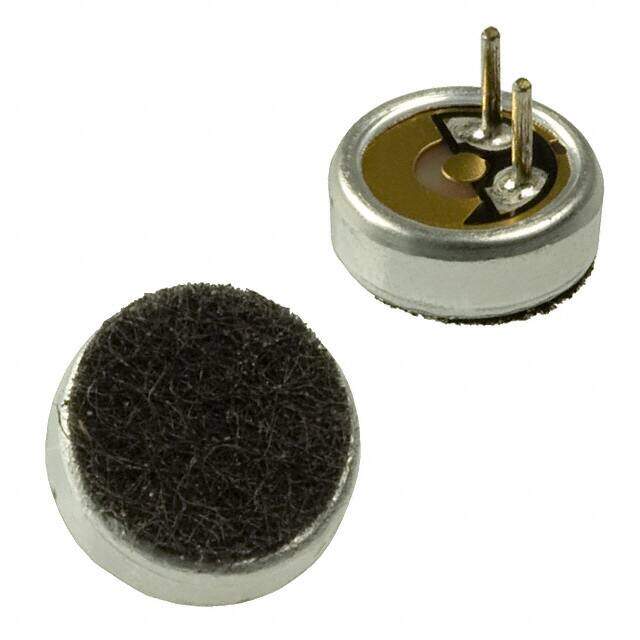

WM-64PNT
RoHS
/
Package /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -44DB 6MM D
PDF
/
Buying Options
Total Price: USD $2.08
Unit Price: USD $2.083572
≥1 USD $2.083572
≥200 USD $0.832379
≥500 USD $0.803495
≥1000 USD $0.790366
Inventory: 7057
Minimum: 1
-
+
Technical Details
Technical
Output Type Analog
Operating Supply Voltage 2V
Max Supply Voltage 10V
Operating Supply Current 500μA
Impedance 2.2kOhms
Current - Supply 500μA
Direction Omnidirectional
Voltage Range 2V~10V
Frequency Range 50Hz~15kHz
Sensitivity -44dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 58dB
Voltage - Rated DC 2V
Voltage - Rated 2V
Resistance 2.2kOhm
Type Electret Condenser
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.236Dia 6.00mm
Series WM-64PN
Published 2009
Packaging Bulk
Dimensions
Diameter 6mm
Height 2.2mm
Height (Max) 0.087 2.20mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Shape Circular
