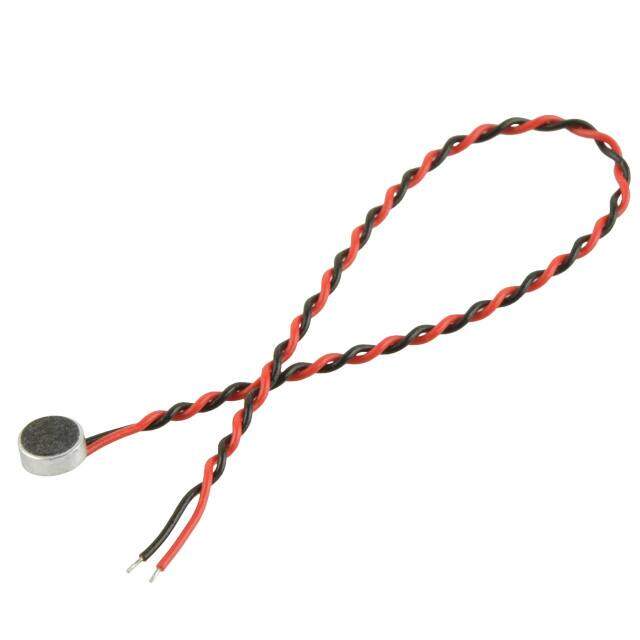

CMC-4015-40L100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -40DB 4MM D
PDF
/
Buying Options
Total Price: USD $1.76
Unit Price: USD $1.76
≥1 USD $1.76
≥10 USD $1.45816
≥100 USD $1.34816
≥500 USD $1.267728
≥1000 USD $1.1902
≥3000 USD $1.10271
Inventory: 204
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Shape Circular
Technical
Packaging Bulk
Series CMC
Size / Dimension 0.157Dia 4.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Electret Condenser
Voltage - Rated 2V
Output Type Analog
Impedance 2.2kOhm
Current - Supply 500μA
Direction Omnidirectional
Voltage Range 2V~10V
Frequency Range 20Hz~20kHz
Sensitivity -40dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 58dB
Dimensions
Height (Max) 0.067 1.70mm
Compliance
RoHS Status RoHS Compliant
