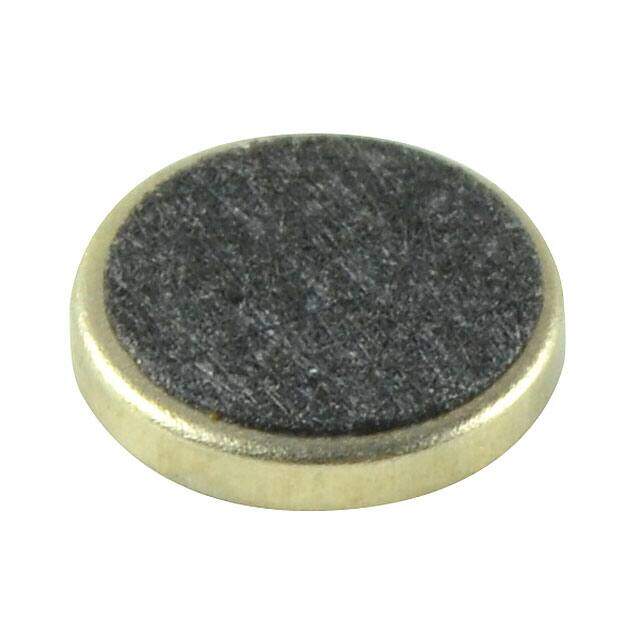

CMC-6010-42T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -42DB 6MM D
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.399551
≥1 USD $1.399551
≥200 USD $0.542228
≥500 USD $0.522534
≥1000 USD $0.513344
Inventory: 3852
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.047 1.20mm
Technical
S/N Ratio 58dB
Port Location Top
Sensitivity -42dB ±3dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhm
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.236Dia 6.00mm
Series CMC
Published 2017
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
