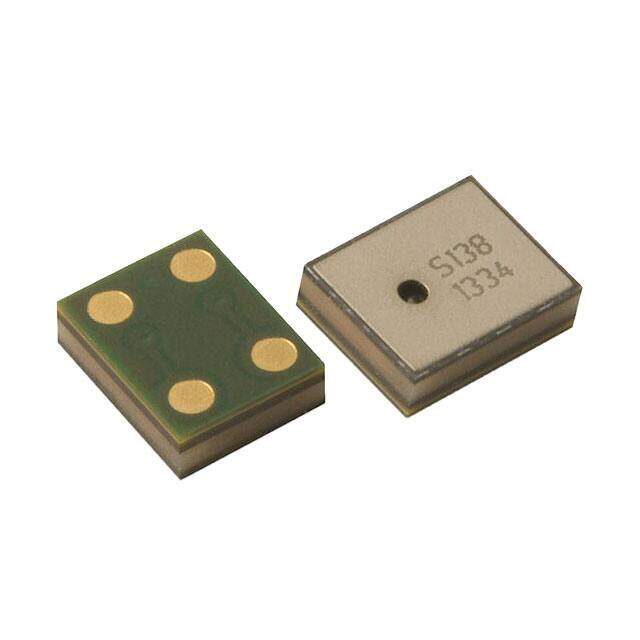

SPUL409HE5H-PB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC MEMS ANALOG OMNI -42DB
PDF
/
Buying Options
Total Price: USD $5.37
Unit Price: USD $5.3694
≥1 USD $5.3694
≥10 USD $4.4061
≥100 USD $4.26835
≥500 USD $4.1306
≥1000 USD $3.99285
Inventory: 5009
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 2.95mm
Length 3.76mm
Height 1.2mm
Technical
Port Location Top
Sensitivity -42dB ±3dB @ 94dB SPL
Signal to Noise Ratio (SNR) 59 dB
Frequency Range 100Hz~10kHz
Voltage Range 1.5V~3.6V
Direction Omnidirectional
Impedance 300Ohm
Operating Supply Current 190μA
Supply Voltage-Min (Vsup) 1.5V
Temperature Grade INDUSTRIAL
Operating Supply Voltage 3.6V
Output Type Analog
Operating Temperature (Min) -40°C
Operating Temperature (Max) 100°C
JESD-30 Code R-XXMA-X4
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Depth 1.2mm
Terminal Pitch 2.46mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
HTS Code 8542.39.00.01
Voltage - Rated 3.6V
Type MEMS (Silicon)
Termination Solder Pads
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Size / Dimension 0.148Lx0.116W 3.76mmx2.95mm
Series SiSonic?
Published 2010
Packaging Cut Tape (CT)
Physical
Shape Rectangular
Surface Mount NO
