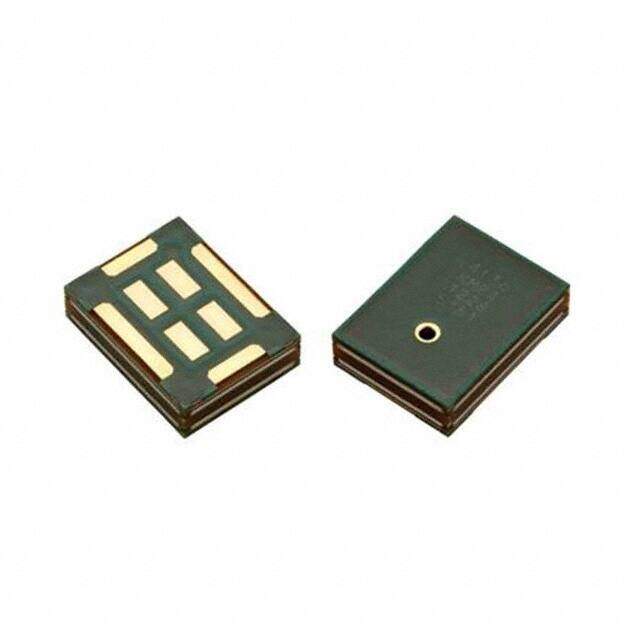

SPK0838HT4H-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MICROPHONE MEMS DIGITAL PDM OMNI
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.75064
≥100 USD $0.694496
≥500 USD $0.670912
Inventory: 8901
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Shape Rectangular
Technical
Packaging Tape & Reel (TR)
Series SiSonic?
Size / Dimension 0.157Lx0.118W 4.00mmx3.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder Pads
Type MEMS (Silicon)
Voltage - Rated 1.8V
Output Type Digital, PDM
Current - Supply 700μA
Direction Omnidirectional
Frequency Range 100Hz~10kHz
Sensitivity -26dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 64dB
Dimensions
Height (Max) 0.043 1.10mm
Compliance
RoHS Status RoHS Compliant
