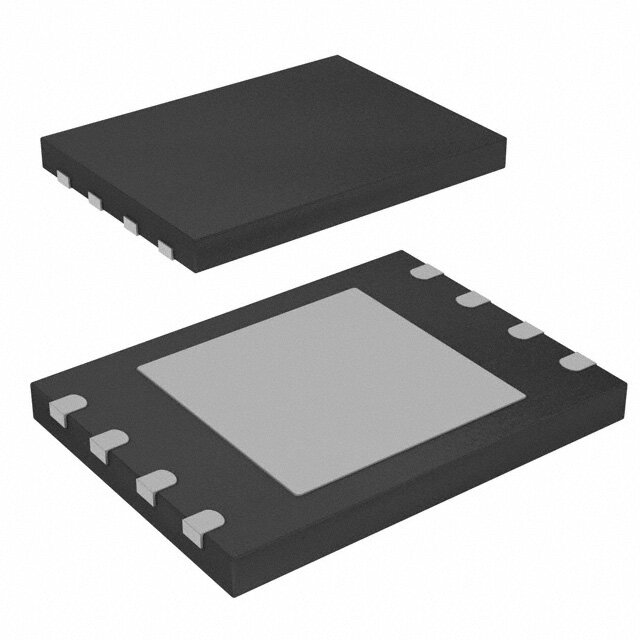

FM25H20-DGTR image
Favorite
FM25H20-DGTR image
Favorite
RoHS
RoHS RoHS compliant
Package 8-WDFN Exposed Pad
Category Integrated Circuits (ICs) / Memory
Description Obsolete 2013 2-Wire SPI Serial DUAL FRAM Memory -40C~85C TA 2.7V 2Mb 10mA
PDF
/
Inventory: 8449
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-WDFN Exposed Pad
Number of Pins 8

Technical

Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2013
Series F-RAM?
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Terminal Finish Tin (Sn)
Subcategory SRAMs
Technology FRAM (Ferroelectric RAM)
Voltage - Supply 2.7V~3.6V
Terminal Position DUAL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.27mm
Base Part Number FM25H20
Pin Count 8
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3/3.3V
Supply Voltage-Min (Vsup) 2.7V
Interface 2-Wire, SPI, Serial
Memory Size 2Mb 256K x 8
Nominal Supply Current 10mA
Memory Type Non-Volatile
Clock Frequency 40MHz
Access Time 9 ns
Memory Format FRAM
Memory Interface SPI
Data Bus Width 8b
Memory Width 8
Density 2 Mb
Standby Current-Max 0.00027A
Word Size 8b

Dimensions

Height Seated (Max) 2mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
