MX25L12835FZ2I-10G
RoHS
RoHS compliant

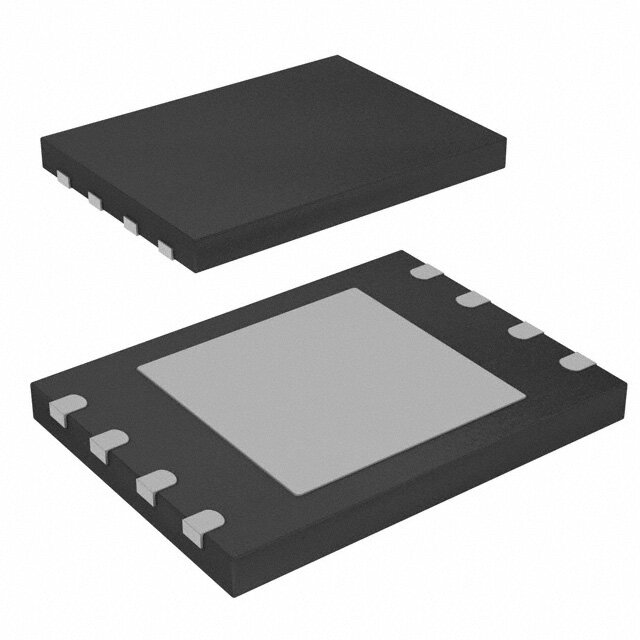

RoHS compliantPackage 8-WDFN Exposed Pad
Category Integrated Circuits (ICs) / Memory
Description
R-PDSO-N8 Surface Mount Tray 32MX4 ic memory 104MHz 30mus 1.5ms 6mm 0.00002A
PDF
/
Buying Options
Total Price: USD $1.82
Unit Price: USD $1.8216
≥1 USD $1.8216
≥10 USD $1.63768
≥100 USD $1.612864
≥500 USD $1.60842
≥1000 USD $1.485
Inventory: 39724
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 6mm
Length 8mm
Height Seated (Max) 0.8mm
Technical
Alternate Memory Width 2
Write Protection HARDWARE/SOFTWARE
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
Serial Bus Type SPI
Programming Voltage 3V
Memory Density 134217728 bit
Standby Current-Max 0.00002A
Write Cycle Time - Word, Page 30μs, 1.5ms
Memory Width 4
Organization 32MX4
Memory Interface SPI
Memory Format FLASH
Supply Current-Max 0.025mA
Clock Frequency 104MHz
Operating Mode SYNCHRONOUS
Memory Type Non-Volatile
Memory Size 128Mb 16M x 8
Interface SPI, Serial
Supply Voltage-Min (Vsup) 2.7V
Power Supplies 3/3.3V
Supply Voltage-Max (Vsup) 3.6V
Qualification Status Not Qualified
JESD-30 Code R-PDSO-N8
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 1.27mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Voltage - Supply 2.7V~3.6V
Technology FLASH - NOR
Additional Feature IT ALSO CONFIGURED AS 128M X 1
Terminal Finish Matte Tin (Sn)
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
JESD-609 Code e3
Series MX25xxx35/36 - MXSMIO?
Published 2016
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 8-WDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
