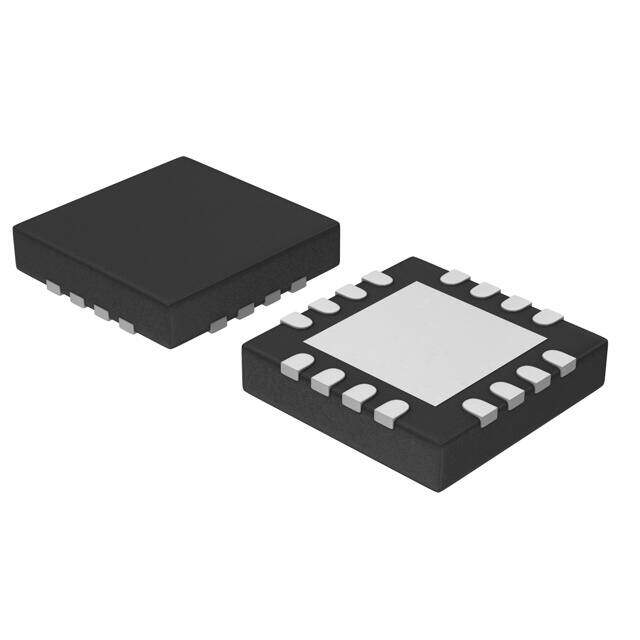

SN74HC595BRWNR
RoHS
RoHS compliant
RoHS compliantPackage 16-XFQFN Exposed Pad
Category Integrated Circuits (ICs) / Logic - Shift Registers
Description
HC/UH 74HC595 ROHS3Compliant Tape & Reel (TR) shift register 34ns 500mum 25MHz 2V
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.396
≥1 USD $0.396
≥10 USD $0.34848
≥100 USD $0.32736
≥500 USD $0.267168
≥1000 USD $0.248125
≥3000 USD $0.211182
Inventory: 71393
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Thickness 450μm
Width 2.5mm
Length 2.5mm
Height 500μm
Technical
Count Direction RIGHT
fmax-Min 25 MHz
Schmitt Trigger No
Propagation Delay (tpd) 300 ns
Trigger Type POSITIVE EDGE
Prop. Delay@Nom-Sup 34 ns
Number of Bits per Element 8
Output Polarity TRUE
Logic Type Shift Register
Output Characteristics 3-STATE
Logic Function Shift Register
Family HC/UH
Load Capacitance 50pF
Supply Voltage-Min (Vsup) 2V
Supply Voltage-Max (Vsup) 6V
Number of Elements 1
Output Type Tri-State
Function Serial to Parallel
Base Part Number 74HC595
Terminal Pitch 0.4mm
Supply Voltage 5V
Terminal Form NO LEAD
Terminal Position QUAD
Voltage - Supply 2V~6V
Technology CMOS
Packing Method TR
Additional Feature PARALLEL OUTPUT IS REGISTERED; UNREGISTERED SERIAL SHIFT RIGHT OUTPUT
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
ECCN Code EAR99
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series 74HC
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Number of Pins 16
Package / Case 16-XFQFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
