74AUP1G04GTR
RoHS
RoHS compliant

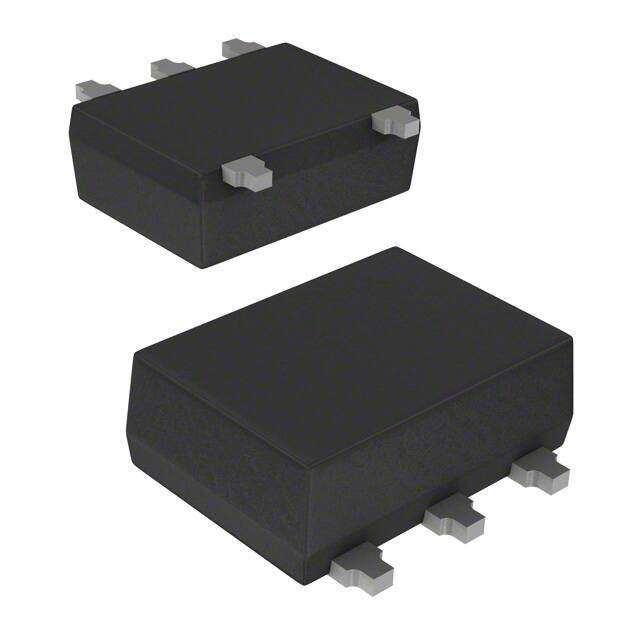

RoHS compliantPackage SOT-665
Category Integrated Circuits (ICs) / Logic - Gates and Inverters
Description
Buffer Inverter 74AUP1G04 R-PDFP-F6 74AUP logic gate circuit 3.8ns @ 3.3V 30pF 10mA 10mA 1.6V-2V -40C~85C
PDF
/
Inventory: 7384
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Logic Level - High 1.6V ~ 2V
Logic Level - Low 0.7V ~ 0.8V
Schmitt Trigger NO
Max Propagation Delay @ V, Max CL 3.8ns @ 3.3V, 30pF
Logic Type Inverter
Current - Output High, Low 10mA 10mA
Logic Function Buffer, Inverter
Turn On Delay Time 16 ns
Quiescent Current 100nA
Propagation Delay 3.8 ns
Number of Circuits 1
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
JESD-30 Code R-PDFP-F6
Base Part Number 74AUP1G04
Reach Compliance Code unknown
Terminal Form FLAT
Terminal Position DUAL
Voltage - Supply 1.2V~3.6V
Technology CMOS
Packing Method TAPE AND REEL
Subcategory Gates
Number of Terminations 6
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 74AUP
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 5
Package / Case SOT-665
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Alternative Model
