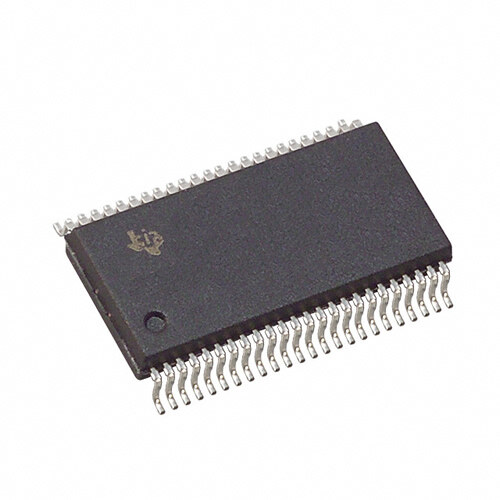

SN74GTL16612DLRG4
RoHS
/
Package SSOP
Category Integrated Circuits (ICs) / Logic - Translators, Level Shifters
Description
IC UNIV BUS TXRX 18BIT 56SSOP
PDF
/
Inventory: 1494
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case SSOP
Number of Pins 56
Weight 694.790113mg
Technical
Packaging Tape and Reel
JESD-609 Code e4
Pbfree Code yes
Moisture Sensitivity Level (MSL) 1
Number of Terminations 56
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Additional Feature TRANSLATES BETWEEN GTL LEVELS AND LVTTL OR 5V TTL LEVELS
Subcategory Bus Driver/Transceivers
Technology BICMOS
Terminal Position DUAL
Terminal Form GULL WING
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.635mm
Frequency 95MHz
Pin Count 56
Number of Elements 1
Polarity Non-Inverting
Power Supplies 3.35V
Temperature Grade INDUSTRIAL
Max Supply Voltage 5.25V
Min Supply Voltage 3.15V
Number of Ports 2
Nominal Supply Current 120mA
Current - Output 64mA
Number of Bits 18
Propagation Delay 6.3 ns
Quiescent Current 12μA
Turn On Delay Time 7.4 ns
Family GTL/TVC
Logic Function Transceiver, Translator
Direction Bidirectional
Output Characteristics 3-STATE
Logic IC Type REGISTERED BUS TRANSCEIVER
Max I(ol) 0.064 A
Trigger Type POSITIVE EDGE
High Level Output Current -32mA
Low Level Output Current 64mA
Control Type INDEPENDENT CONTROL
Translation GTL & LVTTL
Dimensions
Height Seated (Max) 2.79mm
Width 7.49mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
