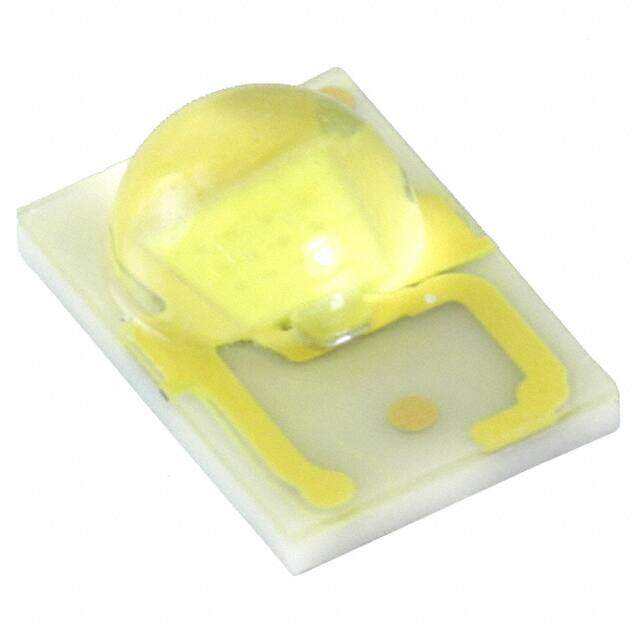

LXML-PWC1-0120 image
Favorite
LXML-PWC1-0120 image
Favorite

LXML-PWC1-0120

Lumileds
RoHS
RoHS RoHS compliant
Package 1812 (4532 Metric)
Category Optoelectronics / LED Lighting - White
Description High Power LEDs - White Cool White 120lm, 350mA
PDF
/
Buying Options
Total Price: USD $3.08
Unit Price: USD $3.08
≥1 USD $3.08
≥10 USD $2.17712
≥100 USD $1.782792
≥500 USD $1.502952
Inventory: 1199
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Number of Pins 2
Thermal Resistance of Package 10°C/W

Technical

Packaging Cut Tape (CT)
Published 2014
Series LUXEON Rebel General Purpose White
Size / Dimension 0.177Lx0.120W 4.49mmx3.05mm
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Max Operating Temperature 135°C
Min Operating Temperature -40°C
Color White, Cool
Additional Feature UL RECOGNIZED, HIGH RELIABILITY
Number of Functions 1
Configuration SINGLE
Max Current Rating 1A
Voltage - Forward (Vf) (Typ) 3V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 350mA
Lens Style Circular, Dome, Round
Lumens/Watt @ Current - Test 118 lm/W
CCT (K) 4500K ~ 10000K
CRI (Color Rendering Index) 70 (Typ)
Illumination Color White
Lens Color Clear, White
Luminous Flux 120 lm
Flux @ 25°C, Current - Test 124lm Typ
Number of LEDs 1

Dimensions

Height 1.98mm
Height Seated (Max) 0.083 2.10mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
