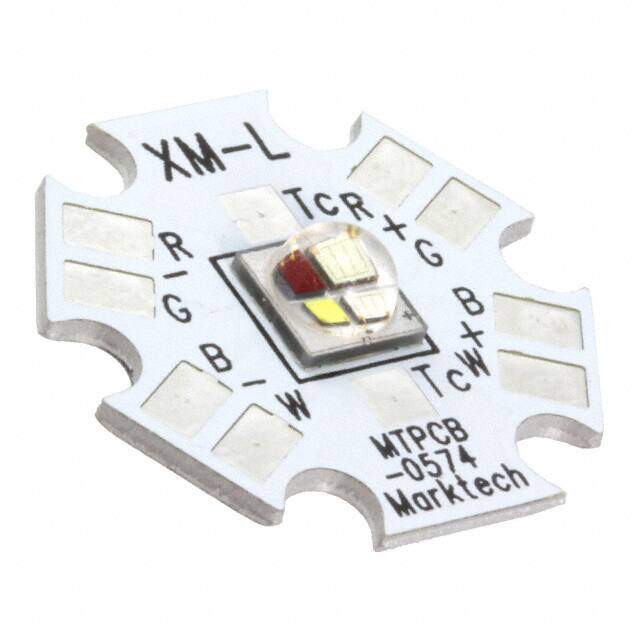

MTG7-001I-XML00-RGBW-BCB1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Optoelectronics / LED Lighting - COBs, Engines, Modules, Strips
Description
LED CREE BRD XML RGBW
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Technical
Published 2013
Series XM-L
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type LED Module
Color Red, Green, Blue, White - Neutral (RGBW)
Configuration Starboard
Max Current Rating 1A
Voltage - Forward (Vf) (Typ) 2.25V Red 3.3V Green 3.1V Blue 3.1V White
Viewing Angle 130°
Current - Test 350mA
Lens Style Domed
Lumens/Watt @ Current - Test 58 lm/W Red 75 lm/W Green 13 lm/W Royal Blue 83 lm/W White
CCT (K) 4000K
Forward Voltage 3.1V
Current - Max 1A
Lens Type Domed
Temperature - Test 25°C
Flux @ Current/Temperature - Test 46lm Typ Red 87lm Typ Green 14lm Typ Blue 90lm Typ White
Wavelength 628nm Red 528nm Green 458nm Blue
Compliance
RoHS Status RoHS Compliant
