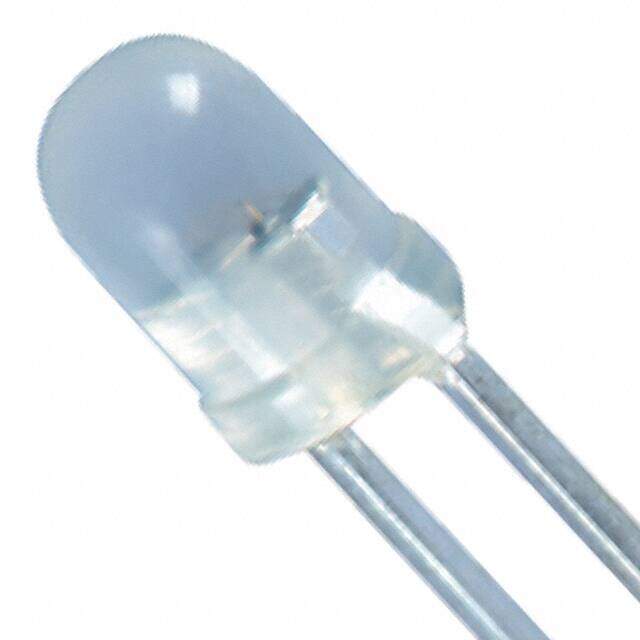

XLUYR37M
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED/YELLOW DIFFUSED T-1 T/H
PDF
/
Inventory: 8507
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial
Surface Mount NO
Technical
Packaging Bulk
Published 2013
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Color Red, Yellow
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
HTS Code 8541.40.20.00
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Bidirectional
Voltage - Forward (Vf) (Typ) 2V Red 2.1V Yellow
Viewing Angle 60°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Red 20mA Yellow
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 19.0/6.0 mcd
Millicandela Rating 9mcd Red, 7mcd Yellow
Lens Transparency Diffused
Wavelength - Peak 627nm Red 590nm Yellow
Lens Color White
Forward Current-Max 0.03A
Overall Height 4.6mm
Wavelength - Dominant 617nm Red 588nm Yellow
T-code T-1
Dimensions
Height (Max) 4.60mm
Compliance
RoHS Status ROHS3 Compliant
