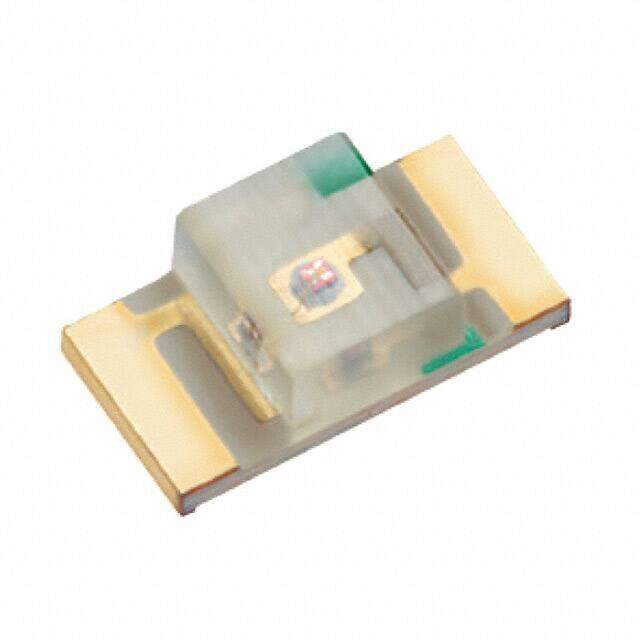

XZDGK55W-2
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
1206 Reverse Mount, 515nm Green LED; 1.6x3.2x1.05mm SMD, Chip Type Mount with Raised Flat Top Lens
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
≥10 USD $0.27368
≥100 USD $0.157432
≥500 USD $0.123191
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1.05mm
Technical
Wavelength - Dominant 525nm
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 515nm
Lens Transparency Clear
Luminous Intensity 347 mcd
Lens Size 1.40mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.6mm
Number of Functions 1
Packing Method TR, 7 INCH
Color Green
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx1.60mm W
Published 2014
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount, Bottom Entry
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
