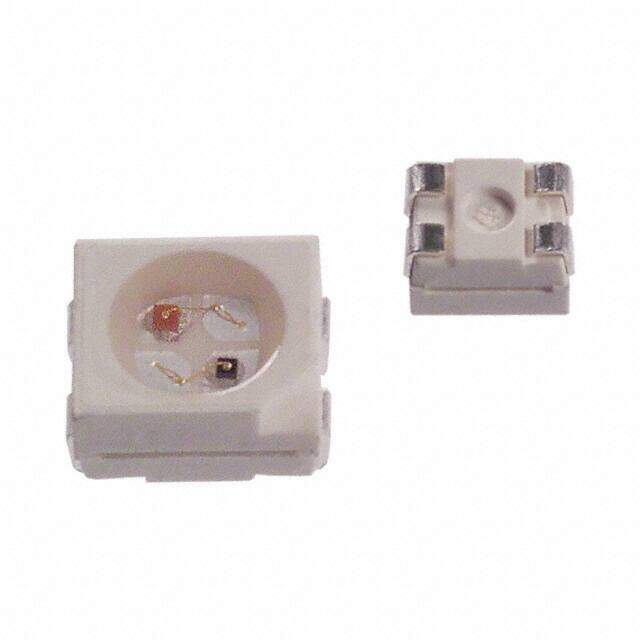

CMD6722SRUGCTR8 image
Favorite
CMD6722SRUGCTR8 image
Favorite
RoHS
RoHS RoHS compliant
Package 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description LED GREEN/RED CLEAR SMD
PDF
/
Buying Options
Total Price: USD $1.75
Unit Price: USD $1.7512
≥1 USD $1.7512
≥10 USD $1.16512
≥100 USD $0.89672
≥500 USD $0.810586
≥1000 USD $0.696599
Inventory: 1200
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height 1.9mm

Technical

Reverse Voltage 5V
Wavelength - Peak 565nm Green 660nm Red
Lens Transparency Clear
Illumination Color Green, Red
Millicandela Rating 25mcd Green, 40mcd Red
Luminous Intensity 25 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Current - Test 20mA Green 20mA Red
Forward Current 20mA
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.1V Green 1.7V Red
Configuration Independent
Number of Elements 2
Depth 3.2mm
Number of Functions 1
Packing Method TAPE AND REEL
Power Rating 105mW
Color Green, Red
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Terminations 4
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx2.80mm W
Published 2003
Packaging Tape & Reel (TR)

Physical

Number of Pins 4
Package / Case 4-PLCC
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 8 Weeks
