EFA3863X
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description

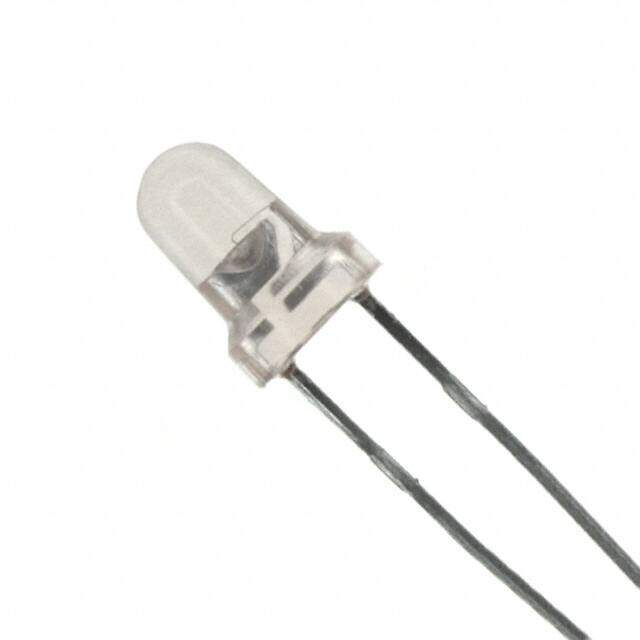

LED ORANGE CLEAR 3MM ROUND T/H
PDF
/
Inventory: 2520
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 1
Technical
Packaging Bulk
Published 2001
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Orange
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.5mm
Depth 4.2mm
Reach Compliance Code unknown
Configuration Standard
Power Dissipation 125mW
Voltage - Forward (Vf) (Typ) 1.9V
Viewing Angle 20°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 50mA
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 1.6 cd
Millicandela Rating 1600mcd
Lens Transparency Clear
Wavelength - Peak 609nm
Reverse Voltage 5V
Forward Voltage-Max 2.4V
Wavelength - Dominant 605nm
T-code T-1
Dimensions
Diameter 3mm
Height 5.9mm
Length 4.2mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
