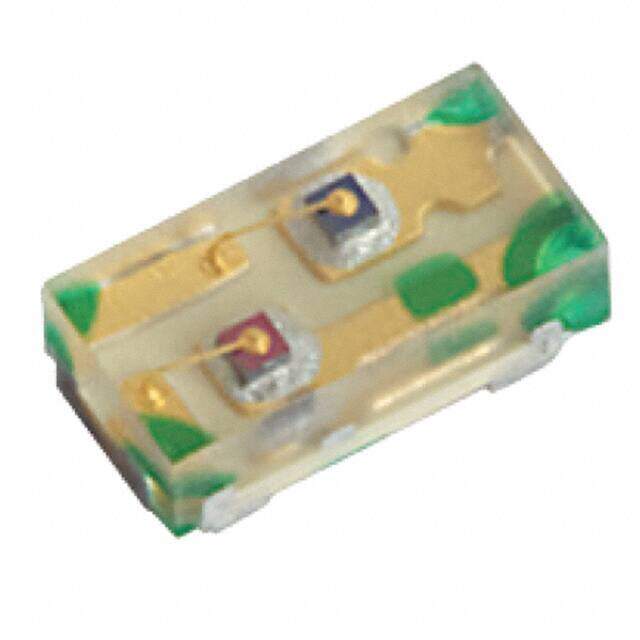

XZCBDMDK53W-9
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE/RED CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.40128
≥100 USD $0.265584
≥500 USD $0.205084
Inventory: 1136
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 500μm
Technical
Wavelength - Dominant 465nm Blue 630nm Red
Lens Color Colorless
Wavelength - Peak 460nm Blue 645nm Red
Lens Transparency Clear
Millicandela Rating 69mcd Blue, 89mcd Red
Luminous Intensity 89 mcd
Lens Size 1.60mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Blue 20mA Red
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 130°
Voltage - Forward (Vf) (Typ) 3.3V Blue 1.95V Red
Configuration Independent
Color Blue, Red
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 1.60mm Lx0.80mm W
Published 2014
Packaging Tape & Reel (TR)
Physical
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
