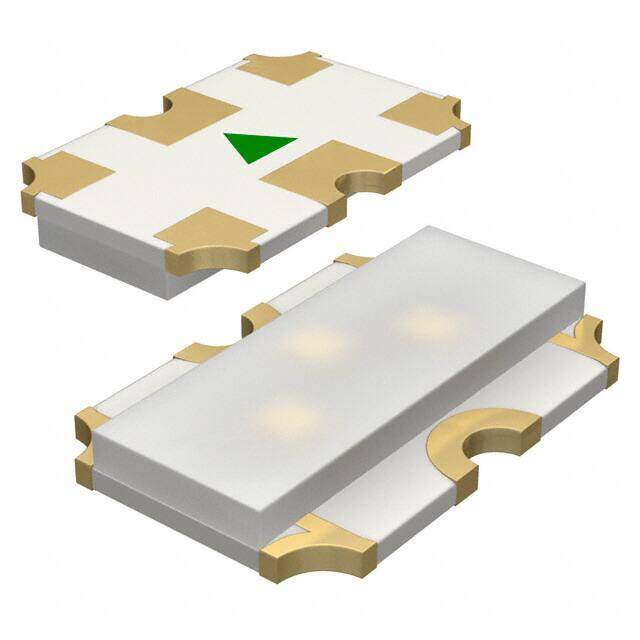

SMLP36RGB1W3
RoHS
RoHS compliant
RoHS compliantPackage 0604 (1510 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB DIFFUSED PICOLED SMD
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4028
≥1 USD $0.4028
≥10 USD $0.3306
≥100 USD $0.32015
≥500 USD $0.31065
≥1000 USD $0.3002
Inventory: 1360
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 250μm
Technical
Number of LEDs 3
Wavelength - Dominant 624nm Red 527nm Green 470nm Blue
Lens Color White
Lens Transparency Diffused
Millicandela Rating 35mcd Red, 110mcd Green, 35mcd Blue
Luminous Intensity 35 mcd
Lens Size 1.50mmx0.60mm
Lens Style Rectangle with Flat Top
Current - Test 5mA Red 5mA Green 5mA Blue
Forward Current 5mA
Voltage - Forward (Vf) (Typ) 2.1V Red 3.1V Green 3V Blue
Configuration Independent
Case Code (Imperial) 0604
Case Code (Metric) 1510
Base Part Number SML-P36
Subcategory Other Optoelectronics
HTS Code 8541.40.80.00
Color Red, Green, Blue (RGB)
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Not For New Designs
Pbfree Code yes
Size / Dimension 1.50mm Lx1.00mm W
Series PicoLED?
Published 2011
Packaging Tape & Reel (TR)
Physical
Number of Pins 6
Package / Case 0604 (1510 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
