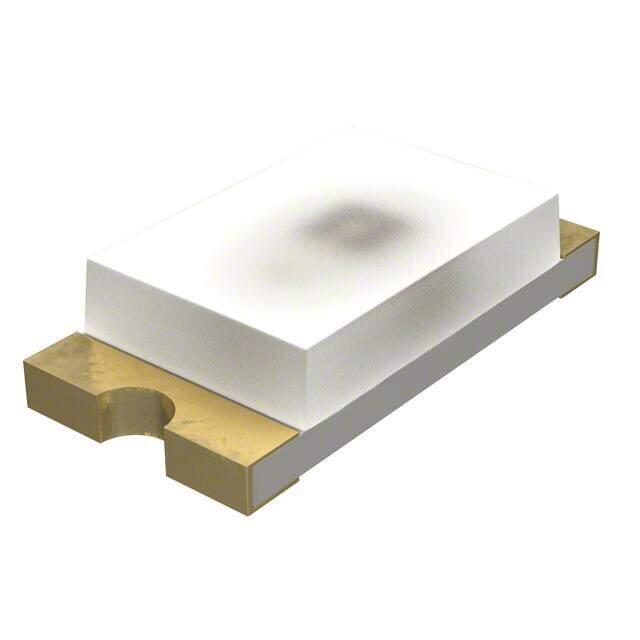

HSMZ-C170
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED DIFFUSED 0805 SMD
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.616
≥1 USD $0.616
≥10 USD $0.40568
≥100 USD $0.268312
≥500 USD $0.207143
≥1000 USD $0.187185
Inventory: 1908
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2009
Size / Dimension 2.00mm Lx1.25mm W
JESD-609 Code e4
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Red
Subcategory Visible LEDs
Power Rating 60mW
Packing Method TAPE AND REEL 7"
Number of Functions 1
Depth 1.25mm
Base Part Number HSMZ-C170
Case Code (Metric) 2012
Case Code (Imperial) 0805
Number of Elements 1
Configuration Standard
Power Dissipation 65mW
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 170°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.40mmx1.25mm
Luminous Intensity 165 mcd
Lens Transparency Diffused
Wavelength - Peak 643nm
Lens Color White
Luminous Flux 122 lm
Reverse Voltage 5V
Wavelength - Dominant 631nm
Dimensions
Height 800μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
