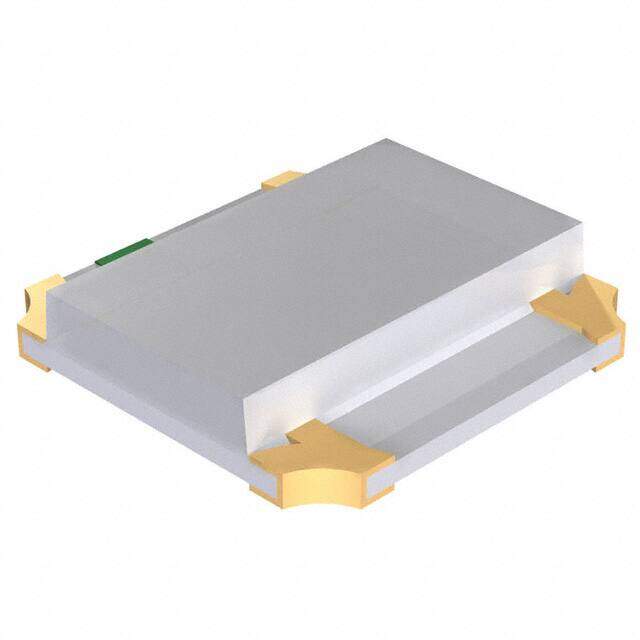

SMLP34RGB2W3
RoHS
RoHS compliant
RoHS compliantPackage 0404 (1010 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB DIFFUSED PICOLED SMD
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4028
≥1 USD $0.4028
≥10 USD $0.3306
≥100 USD $0.32015
≥500 USD $0.31065
≥1000 USD $0.3002
Inventory: 448146
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 250μm
Technical
Wavelength - Dominant 624nm Red 527nm Green 470nm Blue
Lens Color White
Lens Transparency Diffused
Millicandela Rating 35mcd Red, 110mcd Green, 45mcd Blue
Luminous Intensity 45 mcd
Lens Size 1.00mmx0.60mm
Lens Style Rectangle with Flat Top
Current - Test 5mA Red 5mA Green 5mA Blue
Forward Current 20mA
Optoelectronic Device Type TRIPLE COLOR LED
Voltage - Forward (Vf) (Typ) 2.1V Red 3.1V Green 3V Blue
Configuration Common Anode
Case Code (Imperial) 0404
Case Code (Metric) 1010
Base Part Number SML-P34
Color Red, Green, Blue (RGB)
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 1.00mm Lx1.00mm W
Series PicoLED?
Published 2014
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Package / Case 0404 (1010 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
