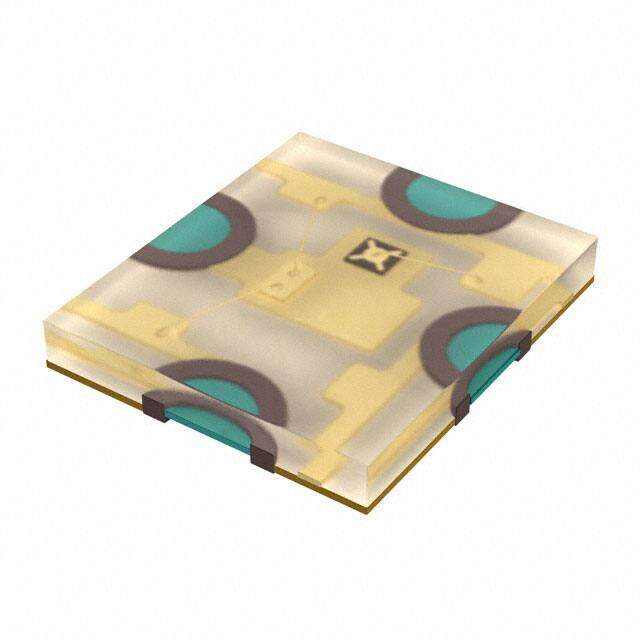

CL-503T-SD-T
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED TRI TOP FIRING 1.5 X 1.3
PDF
/
Buying Options
Total Price: USD $0.59
Unit Price: USD $0.5896
≥1 USD $0.5896
≥10 USD $0.38632
≥100 USD $0.253264
≥500 USD $0.19998
≥1000 USD $0.186648
Inventory: 1198
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.35mm
Width 1.3mm
Length 1.5mm
Height 350μm
Technical
Wavelength - Peak 618nm Red 530nm Green 470nm Blue
Millicandela Rating 36mcd Red, 180mcd Green, 40mcd Blue
Luminous Intensity 40 mcd
Forward Voltage 2.75V
Lens Size 1.30mmx1.50mm
Lens Style Rectangle with Flat Top
Current - Test 5mA Red 5mA Green 5mA Blue
Voltage - Forward (Vf) (Typ) 1.85V Red 2.7V Green 2.75V Blue
Configuration Common Anode
Color Red, Green, Blue (RGB)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 1.50mm Lx1.30mm W
Series CL-503
Published 2012
Packaging Tape & Reel (TR)
Physical
Package / Case 4-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
