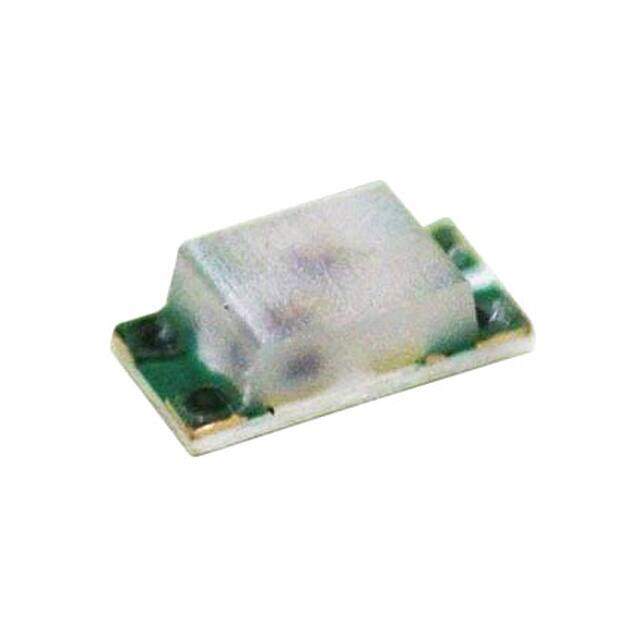

SML-D22MUWT86
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED/YELLOW-GREEN 1608 SMD
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
≥10 USD $0.2948
≥100 USD $0.19492
≥500 USD $0.150489
Inventory: 55482
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 0.65mm
Technical
Wavelength - Dominant 620nm Red 570nm Yellow-Green
Overall Height 0.55mm
Forward Current-Max 0.025A
Lens Color White
Millicandela Rating 16mcd Red, 10mcd Yellow-Green
Luminous Intensity 13.0/8.15 mcd
Lens Size 1.20mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 5mA Red 5mA Yellow-Green
Optoelectronic Device Type DUAL COLOR LED
Voltage - Forward (Vf) (Typ) 1.9V Red 2V Yellow-Green
Configuration Independent
Operating Temperature (Min) -40°C
Operating Temperature (Max) 105°C
Terminal Pitch 1.55mm
Number of Functions 1
Packing Method TR, 7 INCH
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Color Red, Yellow-Green
Number of Terminations 4
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 1.60mm Lx0.80mm W
Series SML-D22
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
