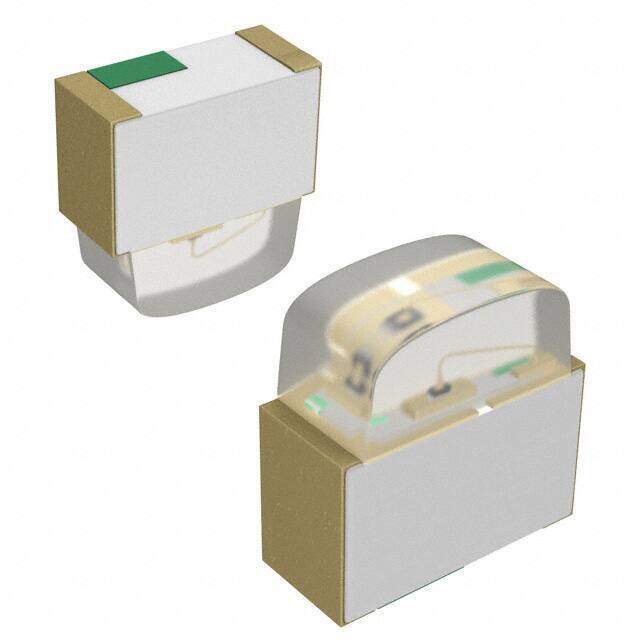

5972403507F
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 0605 SMD R/A
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.8448
≥1 USD $0.8448
≥10 USD $0.55176
≥100 USD $0.361416
≥500 USD $0.285305
Inventory: 1504
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, No Lead
Surface Mount YES
Shape RECTANGULAR
Technical
Packaging Cut Tape (CT)
Published 2010
Series 597
Size / Dimension 1.60mm Lx1.15mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Color Yellow
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL 7"
Number of Functions 1
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 135°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.20mmx0.55mm
Luminous Intensity 63.0 mcd
Millicandela Rating 63mcd
Lens Transparency Clear
Lens Color Colorless
Forward Current-Max 0.03A
Overall Height 0.55mm
Wavelength - Dominant 590nm
Dimensions
Height (Max) 0.55mm
Compliance
RoHS Status ROHS3 Compliant
