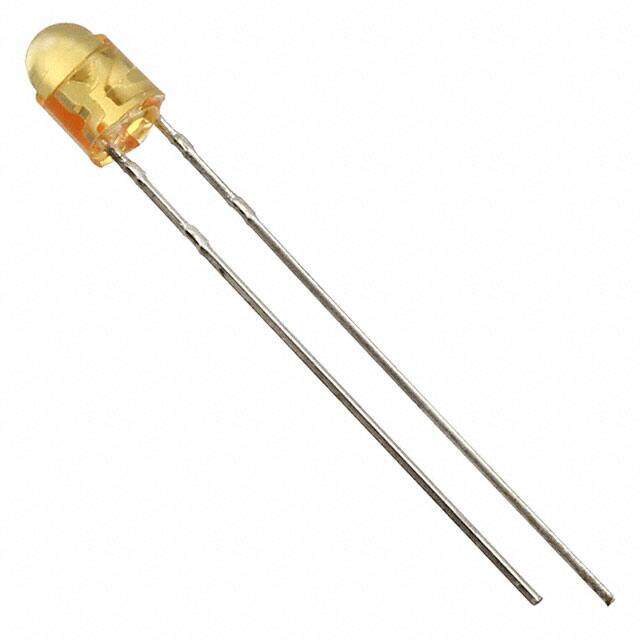

SLR-342DUTE7
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED ORANGE DIFFUSED T/H
PDF
/
Inventory: 4089
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Packaging Tape & Box (TB)
Published 2010
Series SLR-342
JESD-609 Code e1
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Color Orange
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method TAPE AND BOX
Number of Functions 1
Terminal Pitch 2.5mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -25°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 40°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 10mA
Lens Style Round with Domed Top
Lens Size 3.10mm Dia
Luminous Intensity 16 mcd
Lens Transparency Diffused
Wavelength - Peak 610nm
Forward Current-Max 0.02A
Forward Voltage-Max 2V
T-code T-1
Reverse Voltage-Max 3V
Dimensions
Height 5.4mm
Compliance
RoHS Status ROHS3 Compliant
