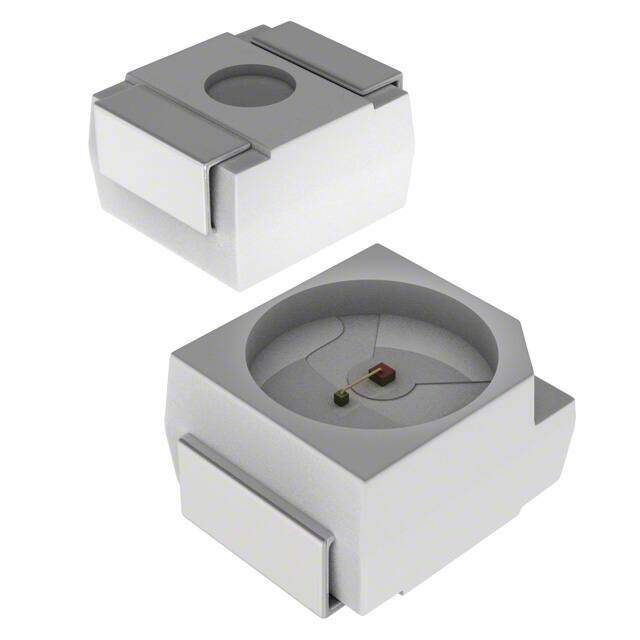

LNJ224C44RA
RoHS
/
Package 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED SMD RED 2-PLCC
PDF
/
Inventory: 933
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 1.8mm
Technical
Reverse Voltage-Max 4V
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Luminous Intensity 150 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Current - Test 20mA
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 100°C
Base Part Number LNJ*24
Reach Compliance Code unknown
Subcategory Visible LEDs
Color Red
Terminal Finish Matte Tin (Sn)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Size / Dimension 3.20mm Lx2.80mm W
Published 2011
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case 2-PLCC
Mounting Type Surface Mount
Mount Surface Mount
