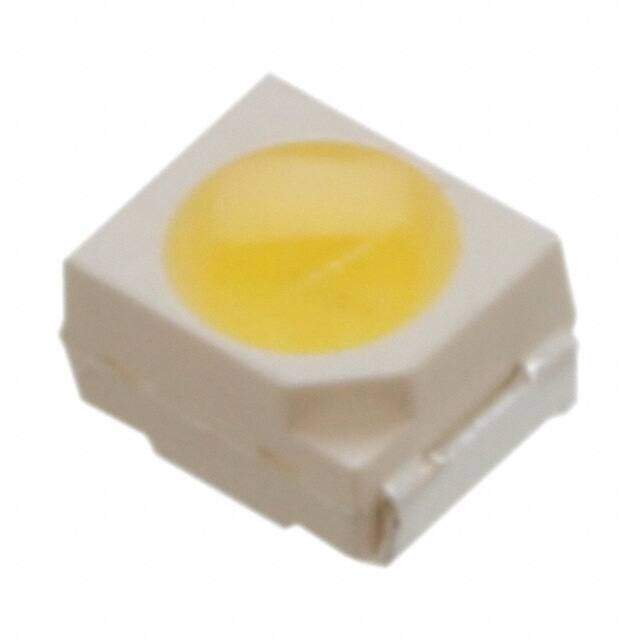

67-21/QK2C-B38452C4CB2/2T
RoHS
/
Package 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED NEUTRAL WHITE 4150K 2SMD
PDF
/
Inventory: 4132
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Height 2.1mm
Technical
Number of LEDs 1
Wavelength - Dominant 3800K ~ 4500K
Luminous Flux 6.8 lm
Lens Color Yellow
Lens Transparency Diffused
Illumination Color White
Millicandela Rating 2200mcd
Luminous Intensity 2.2 cd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.25V
Configuration Standard
Terminal Pitch 3mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Power Rating 110mW
Color White, Neutral
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 3.20mm Lx2.80mm W
Published 2012
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case 2-PLCC
Mounting Type Surface Mount
Mount Surface Mount
