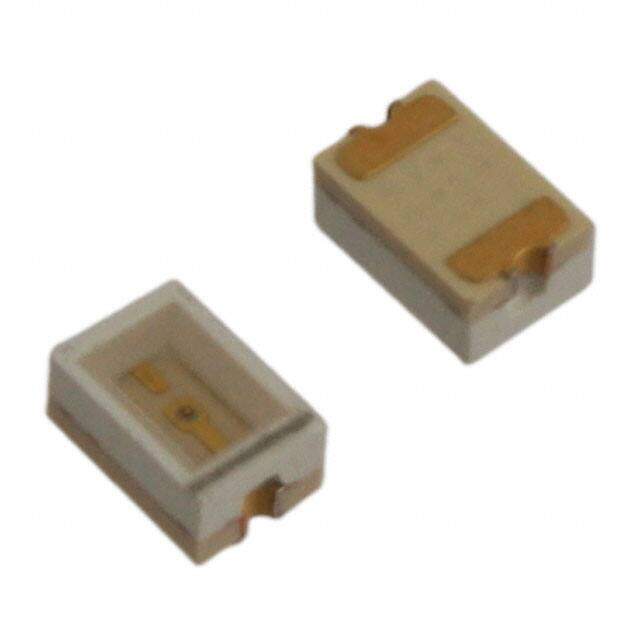

5973202507F

Dialight
RoHS
RoHS RoHS compliant
Package 1208 (3020 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED ORANGE CLEAR 1208 SMD
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.4972
≥100 USD $0.325952
≥500 USD $0.257312
Inventory: 1272
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height (Max) 1.30mm

Technical

Peak Wavelength 605 nm
Wavelength - Dominant 605nm
Overall Height 1.3mm
Forward Current-Max 0.02A
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 160mcd
Luminous Intensity 160.0 mcd
Lens Size 2.30mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.95mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
HTS Code 8541.40.20.00
Color Orange
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 3.00mm Lx2.00mm W
Series 597
Published 2010
Packaging Tape & Reel (TR)

Physical

Shape RECTANGULAR
Surface Mount YES
Package / Case 1208 (3020 Metric)
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 10 Weeks
