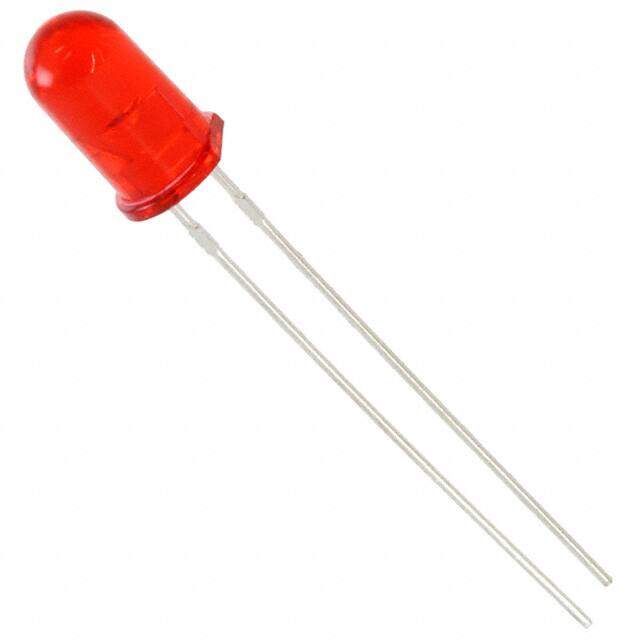

5219247F image
Favorite
5219247F image
Favorite

5219247F

Dialight
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED RED CLEAR 5MM T/H
PDF
/
Buying Options
Total Price: USD $0.77
Unit Price: USD $0.7656
≥1 USD $0.7656
≥10 USD $0.4972
≥100 USD $0.325952
≥500 USD $0.257312
≥1000 USD $0.240152
≥3000 USD $0.231581
Inventory: 1268
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Through Hole
Package / Case Radial
Surface Mount NO

Technical

Packaging Bulk
Published 2002
Series 521
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Color Red
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 100°C
Operating Temperature (Min) -55°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 3V
Viewing Angle 35°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 10mA
Lens Style Round with Domed Top
Lens Size 4.83mm Dia
Luminous Intensity 60.0 mcd
Millicandela Rating 60mcd
Lens Transparency Clear
Wavelength - Peak 635nm
Forward Current-Max 0.03A
Forward Voltage-Max 3V
Overall Height 9.57mm
T-code T-1 3/4

Dimensions

Height (Max) 8.81mm

Compliance

RoHS Status ROHS3 Compliant
