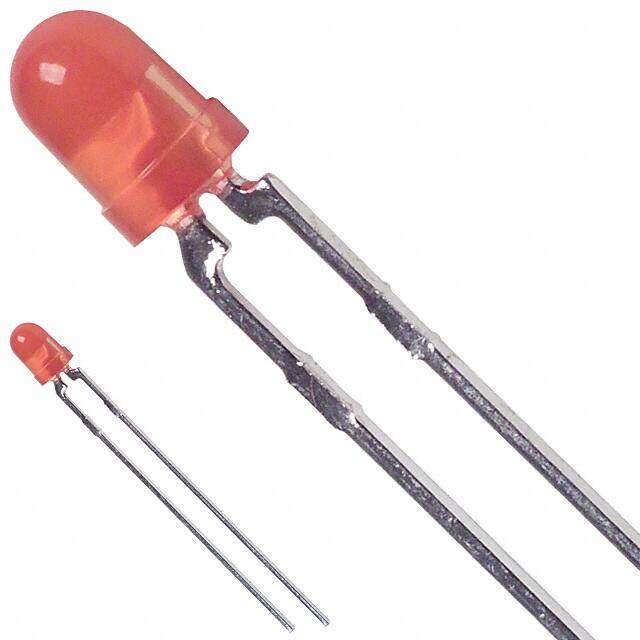

5219498F image
Favorite
5219498F image
Favorite

5219498F

Dialight
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED ORANGE DIFFUSED 3MM T/H
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.6424
≥1 USD $0.6424
≥10 USD $0.42504
≥100 USD $0.280896
≥500 USD $0.216885
≥1000 USD $0.195985
≥3000 USD $0.182917
Inventory: 1265
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height (Max) 6.00mm

Technical

Reverse Voltage-Max 5V
T-code T-1
Overall Height 4.45mm
Forward Voltage-Max 2.2V
Forward Current-Max 0.025A
Wavelength - Peak 600nm
Lens Transparency Diffused
Millicandela Rating 7mcd
Luminous Intensity 7.0 mcd
Lens Size 3.00mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -55°C
Operating Temperature (Max) 100°C
Terminal Pitch 2.54mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Orange
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series 521
Published 2002
Packaging Bulk

Physical

Surface Mount NO
Package / Case Radial
Mounting Type Through Hole

Supply Chain

Factory Lead Time 10 Weeks
