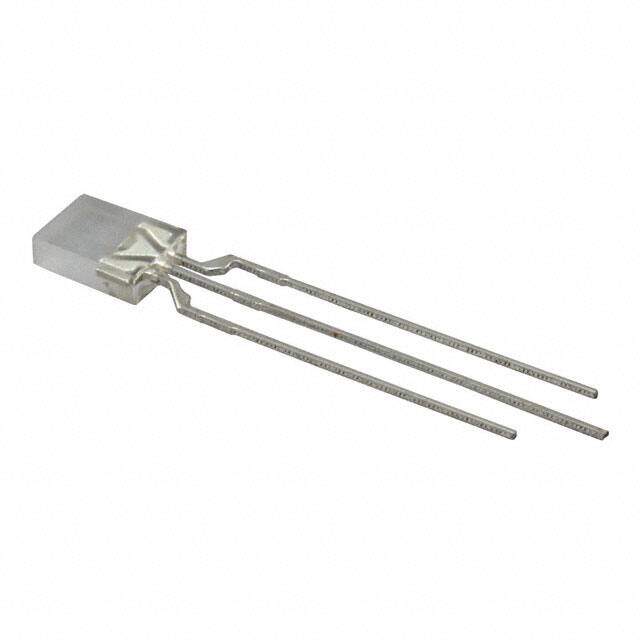

WP119EGWT
RoHS
RoHS compliant
RoHS compliantPackage Radial - 3 Leads
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/RED DIFF RECT 2X5MM T/H
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.32384
≥100 USD $0.186032
≥500 USD $0.145587
≥1000 USD $0.133452
≥3000 USD $0.121317
Inventory: 3851
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 7mm
Technical
Wavelength - Dominant 568nm Green 617nm Red
Forward Current-Max 0.03A
Lens Color White
Wavelength - Peak 565nm Green 627nm Red
Lens Transparency Diffused
Illumination Color Green, Red
Millicandela Rating 9mcd Green, 10mcd Red
Luminous Intensity 20 mcd
Lens Size 5.00mmx2.00mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Green 20mA Red
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 2.2V Green 2V Red
Configuration Common Cathode
Terminal Pitch 2.54mm
Number of Functions 1
HTS Code 8541.40.20.00
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
Color Green, Red
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2011
Packaging Bulk
Physical
Shape RECTANGULAR
Package / Case Radial - 3 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
