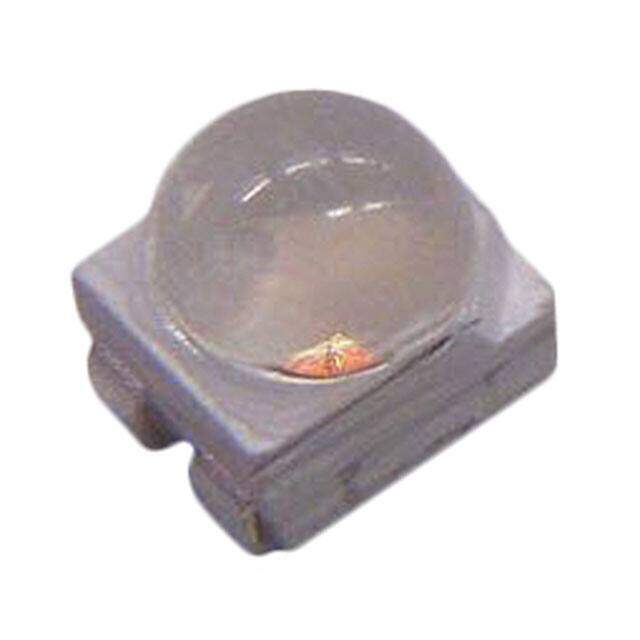

CLM2B-AEW-CYBB0263
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD 60DG AMB WT FC HI BRT LED 591nm 2.5V
PDF
/
Buying Options
Total Price: USD $0.25
Unit Price: USD $0.2464
≥1 USD $0.2464
≥10 USD $0.22616
≥100 USD $0.208912
Inventory: 1284
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 3.55mm
Technical
Wavelength 591 nm
Reverse Voltage 5V
Lens Color Colorless
Lens Transparency Clear
Illumination Color Orange
Millicandela Rating 6275mcd
Luminous Intensity 6.275 cd
Lens Size 2.60mm Dia
Lens Style Round with Domed Top
Forward Current 50mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60 °
Voltage - Forward (Vf) (Typ) 2.5V
Power Dissipation 210mW
Configuration Standard
Number of Elements 1
Base Part Number CLM2B
Depth 3.2mm
Number of Functions 1
Packing Method TAPE AND REEL
Additional Feature HIGH RELIABILITY
Color Amber
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Number of Terminations 4
Moisture Sensitivity Level (MSL) 5A (24 Hours)
Part Status Active
Size / Dimension 3.20mm Lx2.70mm W
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Package / Case 4-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
