HLMP-1421-F00A2
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

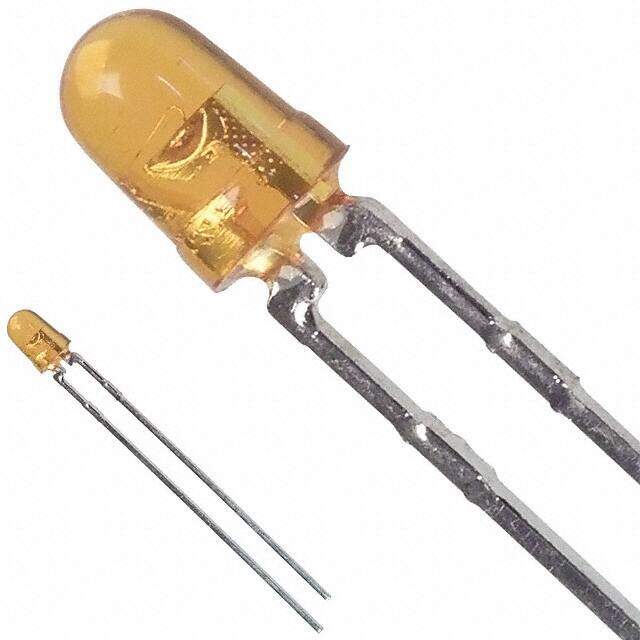

LED YELLOW CLEAR 3MM RND T/H R/A
PDF
/
Inventory: 2800
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Package / Case Radial
Number of Pins 2
Technical
Packaging Bulk
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Color Yellow
Subcategory Visible LEDs
Number of Functions 1
Base Part Number HLMP-1421
Operating Temperature (Min) -55°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 45°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 10mA
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 15 mcd
Lens Transparency Clear
Wavelength - Peak 583nm
Wavelength - Dominant 585nm
Number of LEDs 1
T-code T-1
Reverse Voltage-Max 5V
Dimensions
Diameter 3mm
Height 6.35mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Not Applicable
