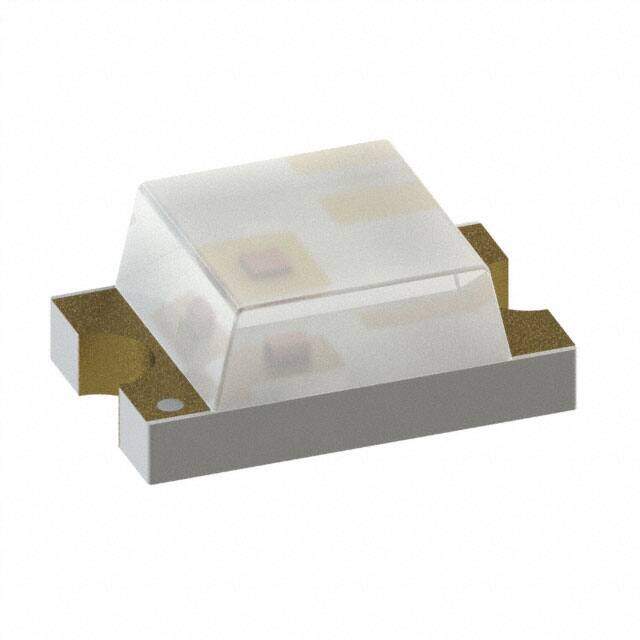

HSME-C170
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED Uni-Color Green 570nm 2-Pin Chip LED T/R
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.2684
≥100 USD $0.177584
≥500 USD $0.145429
Inventory: 73028
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 800μm
Technical
Wavelength - Dominant 572nm
Reverse Voltage 5V
Lens Color White
Wavelength - Peak 570nm
Lens Transparency Diffused
Millicandela Rating 50mcd
Luminous Intensity 50 mcd
Lens Size 1.40mmx1.25mm
Lens Style Rectangle with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 170°
Voltage - Forward (Vf) (Typ) 2.1V
Power Dissipation 52mW
Configuration Standard
Number of Elements 1
Base Part Number HSME-C170
Depth 1.25mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Subcategory Visible LEDs
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e4
Size / Dimension 2.00mm Lx1.25mm W
Published 2008
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
