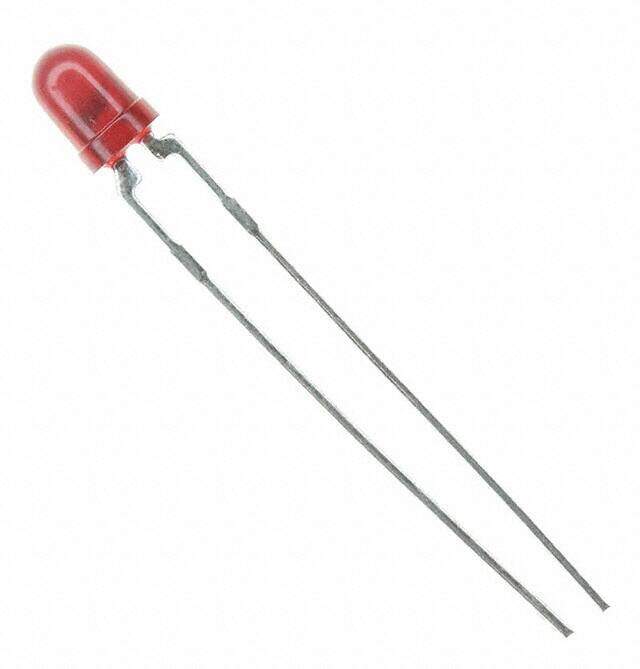

HLMP-1301-E0002
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED DIFFUSED T-1 T/H
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.30448
≥100 USD $0.201256
Inventory: 22416
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Packaging Tape & Reel (TR)
Published 2013
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Red
Subcategory Visible LEDs
Packing Method TAPE AND REEL
Number of Functions 1
Depth 3.43mm
Base Part Number HLMP-1301
Number of Elements 1
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.9V
Viewing Angle 60°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 30mA
Current - Test 10mA
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 3.4 mcd
Lens Transparency Diffused
Wavelength - Peak 635nm
Reverse Voltage 5V
Wavelength - Dominant 626nm
T-code T-1
Dimensions
Diameter 3mm
Height 6.35mm
Length 3.43mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
