SML-011UTT86
RoHS
RoHS compliant
RoHS compliantPackage 1208 (3020 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 3020 SMD
PDF
/
Buying Options
Total Price: USD $0.09
Unit Price: USD $0.0855
≥1 USD $0.0855
≥10 USD $0.0703
≥100 USD $0.0684
≥500 USD $0.0665
≥1000 USD $0.06365
Inventory: 1127
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1208 (3020 Metric)
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2007
Series SML-01
Size / Dimension 3.00mm Lx2.00mm W
JESD-609 Code e4
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Red
Subcategory Visible LEDs
Packing Method TAPE AND REEL
Number of Functions 1
Case Code (Metric) 3020
Case Code (Imperial) 1208
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 110 °
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Rectangle with Flat Top
Lens Size 2.30mmx1.60mm
Luminous Intensity 63 mcd
Millicandela Rating 63mcd
Lens Transparency Clear
Lens Color Colorless
Wavelength 630 nm
Wavelength - Dominant 620nm
Number of LEDs 1
Reverse Voltage-Max 5V
Dimensions
Height 1.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free

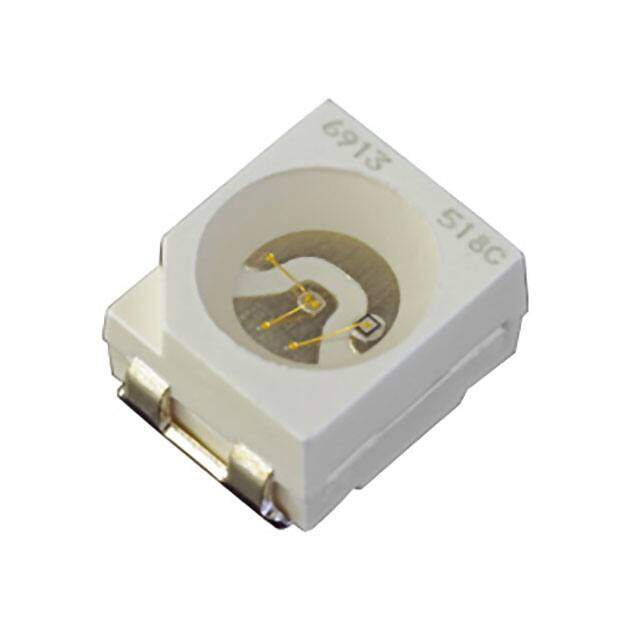

Alternative Model
