SMP4-RGB
RoHS
/
Package 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description

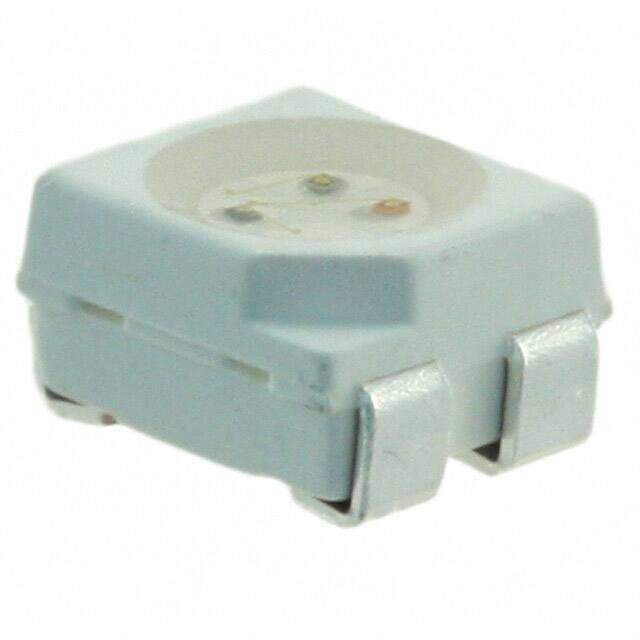

BIVAR SMP4-RGB SMD LED, PLCC, RED/GREEN/BLUE
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5377
≥1 USD $0.5377
≥10 USD $0.4408
≥100 USD $0.4275
≥500 USD $0.41325
≥1000 USD $0.39995
Inventory: 7506
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-PLCC
Number of Pins 4
Technical
Packaging Cut Tape (CT)
Published 2010
Size / Dimension 3.20mm Lx2.80mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Red, Green, Blue (RGB)
Power Rating 100mW
Reach Compliance Code unknown
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 1.85V Red 1.9V Green 3.3V Blue
Viewing Angle 120°
Optoelectronic Device Type TRIPLE COLOR LED
Forward Current 20mA
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Luminous Intensity 50 mcd
Millicandela Rating 36mcd Red, 40mcd Green, 50mcd Blue
Lens Transparency Clear
Lens Color Colorless
Wavelength - Dominant 640nm Red 570nm Green 466nm Blue
Dimensions
Height 1.85mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
