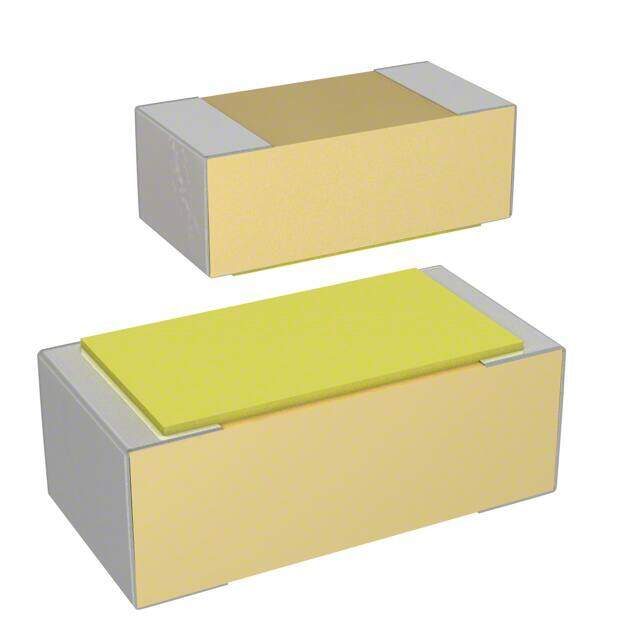

3412.0117.24
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 1.5A 32VAC 63VDC
PDF
/
Inventory: 3677
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Number of Pins 2
Terminal Shape WRAPAROUND
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Weight 99.988768mg
Housing Material Glass
Supply Chain
Factory Lead Time 9 Weeks
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 609.6μm
Technical
Pre-arcing Time-Min 60000ms
Blow Characteristic SUPER FAST
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.044Ohm
Melting I2t 0.14
Breaking Capacity @ Rated Voltage 50A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Max Voltage Rating (DC) 63V
Max Voltage Rating (AC) 32V
Physical Dimension 1.6mm x 0.8mm x 0.6mm
Body Breadth 0.8 mm
Body Length or Diameter 1.6mm
Approval Agency cURus
Voltage - Rated AC 32V
Reference Standard CCC; CSA; UL
Current Rating 1.5A
Depth 800μm
Packing Method BLISTER TAPE AND REEL
Voltage - Rated DC 63V
HTS Code 8536.10.00.40
Resistance 44mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
JESD-609 Code e3
Size / Dimension 0.063Lx0.031W x 0.024 H 1.60mmx0.80mmx0.60mm
Series USF 0603
Packaging Tape & Reel (TR)
Operating Temperature -55°C~90°C
