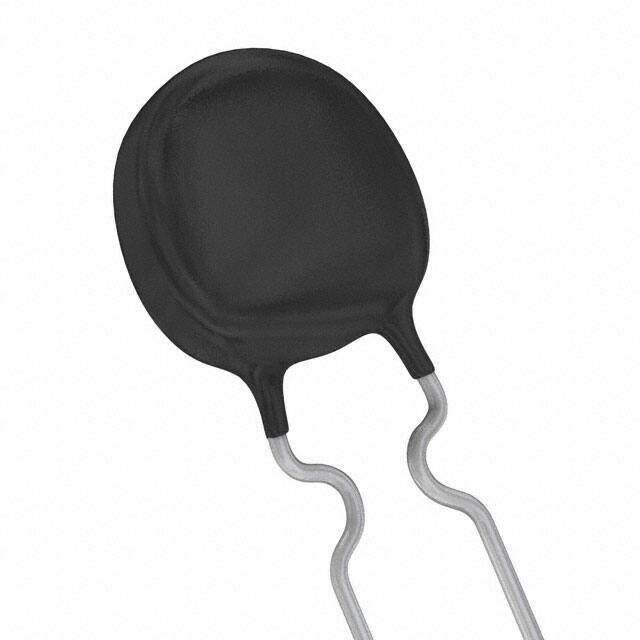

PTCCL11H701DTE
RoHS
/
Package Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
Thermistor PTC 1.3 Ohm 20% 2-Pin Radial T/R
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.749666
≥1 USD $0.749666
≥200 USD $0.290151
≥500 USD $0.279648
≥1500 USD $0.275709
Inventory: 1644
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.610 15.50mm
Technical
Resistance @ 25°C 1.3Ohm
Trip Current 1A
Current - Trip (It) 1.05A
Time to Trip 1.8 s
Voltage - Max 30V
Thermistor Application OVERLOAD PROTECTION
Hold Current 700mA
Rated (AC) Voltage (URac) 30V
Current - Max 8A
Max Current Rating 8A
Lead Spacing 0.197 5.00mm
Approval Agency UR
Rated Power Dissipation (P) 0.0099W
Depth 4mm
Packing Method TR
Terminal Finish MATTE TIN OVER NICKEL
Type Ceramic
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Tolerance 20%
Size / Dimension 0.413Dia x 0.157 T 10.50mmx4.00mm
Series PTCCL
Published 2004
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 2
Terminal Shape WIRE
Package / Case Radial, Disc
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
