153.5395.6101
RoHS
RoHS compliant
RoHS compliantPackage Auto Link
Category Circuit Protection / Fuses
Description

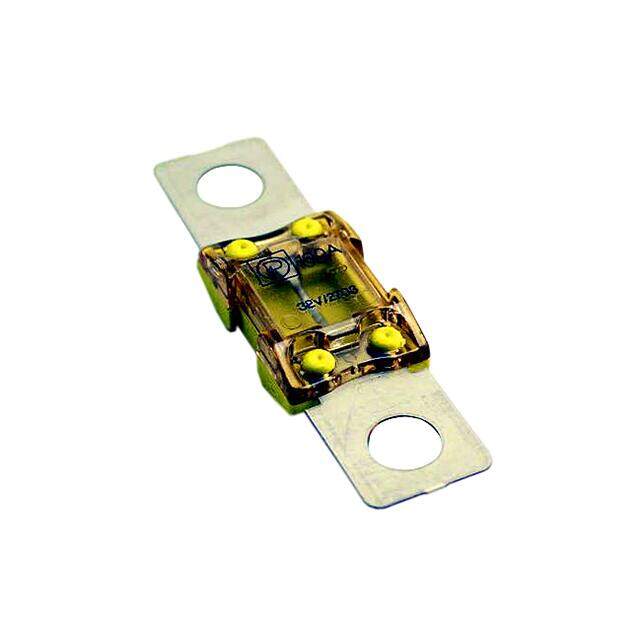

Fuse 100A 32V Bolt 67.3 X 18.8 X 10.4mm
PDF
/
Buying Options
Total Price: USD $18.2
Unit Price: USD $18.2
≥1 USD $18.2
≥10 USD $17.16981
≥100 USD $16.19794
Inventory: 30
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Bolt
Mounting Type Bolt Mount
Package / Case Auto Link
Terminal Shape TAB/BLADE
Body Material Thermoplastic
Technical
Packaging Bulk
Series BF2
Size / Dimension 1.142Lx0.740W x 0.382 H 29.00mmx18.80mmx9.70mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Resistance 700μOhm
Terminal Finish Tin (Sn)
Color Yellow
Additional Feature PRE-ARCING TIME: OPEN WITHIN 0.100 SEC AT 600% RATED CURRENT
Voltage - Rated DC 32V
Depth 18.8mm
Current Rating 100A
Reference Standard CUL; ISO; UL
Voltage - Rated AC 32V
Body Length or Diameter 29mm
Physical Dimension 29mm x 18.8mm x 10.4mm
Response Time Slow Blow
Fuse Type Automotive
Breaking Capacity @ Rated Voltage 2kA
Melting I2t 46800
DC Cold Resistance 0.0007Ohm
Circuit Protection Type ELECTRIC FUSE
Joule Integral-Nom 46800 J
Fuse Current 100A
Dimensions
Height 9.7028mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
