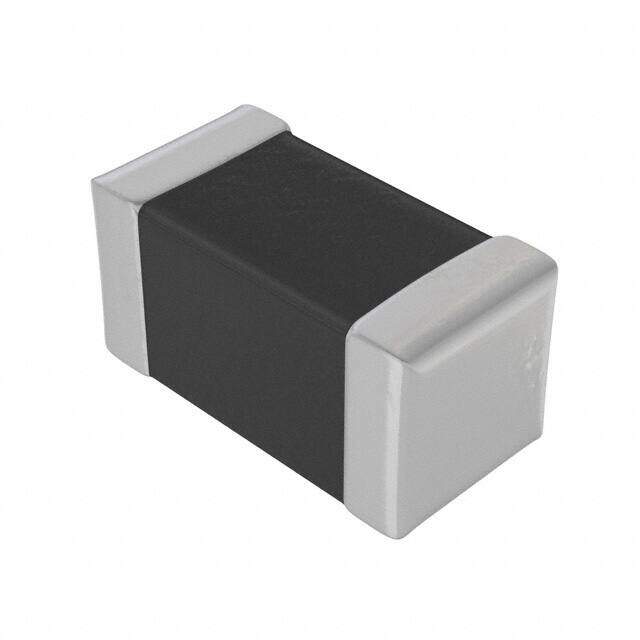

CC06H1.5A-TR
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Circuit Protection / Fuses
Description
1.5A F Non-Resettable Surface Mount Fuse,32 V dc
PDF
/
Buying Options
Total Price: USD $1.14
Unit Price: USD $1.144
≥1 USD $1.144
≥10 USD $1.10704
≥100 USD $1.03576
≥500 USD $0.857472
≥1000 USD $0.71456
≥3000 USD $0.696678
Inventory: 1142
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 810μm
Length 1.6mm
Height 470μm
Technical
DC Cold Resistance 0.122Ohms
Melting I2t 0.07
Breaking Capacity @ Rated Voltage 50A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Max Voltage Rating (DC) 32V
Power Dissipation 330mW
Case Code (Imperial) 0603
Approval Agency cULus
Case Code (Metric) 1608
Current Rating 1.5A
Depth 810μm
Current Rating (Amps) 1.5A
Voltage - Rated DC 32V
Voltage - Rated 32V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 122mOhm
Termination SMD/SMT, Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.063Lx0.032W x 0.019 H 1.60mmx0.81mmx0.47mm
Series CC06H
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Body Material Ceramic
Number of Pins 2
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
