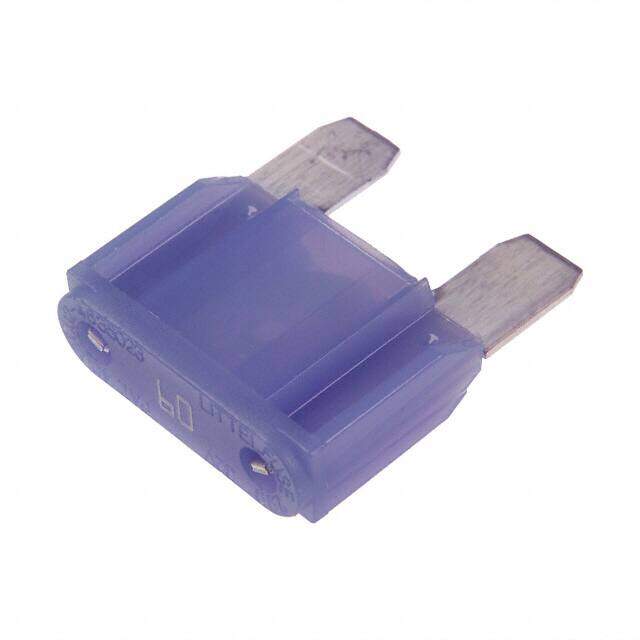

 0299060.L image
Favorite
 0299060.L image
Favorite

0299060.L

Littelfuse Inc.
RoHS
RoHS RoHS compliant
Package Blade, Max
Category Circuit Protection / Fuses
Description FUSE AUTO 60A 32VDC BLADE
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.498952
≥1 USD $2.498952
≥10 USD $2.357507
≥100 USD $2.224064
≥500 USD $2.098173
≥1000 USD $1.979406
Inventory: 1155
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 21.59mm

Technical

Trip Time or Delay 360000 s
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.00089Ohm
Melting I2t 15300
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Response Time Slow Blow
Physical Dimension 29.21mm x 8.85mm x 21.59mm
Body Breadth 8.85 mm
Body Length or Diameter 29.21mm
Approval Agency DIN, ISO, SAE
Reference Standard UL
Current Rating 60A
Reach Compliance Code unknown
Voltage - Rated DC 32V
Color Blue
Terminal Finish Silver (Ag)
Resistance 890μOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
JESD-609 Code e4
Size / Dimension 1.150Lx0.348W x 0.850 H 29.21mmx8.85mmx21.59mm
Series MAXI?
Packaging Bulk
Operating Temperature -40°C~125°C

Physical

Terminal Shape TAB/BLADE
Package / Case Blade, Max
Mounting Type Holder

Supply Chain

Factory Lead Time 7 Weeks
