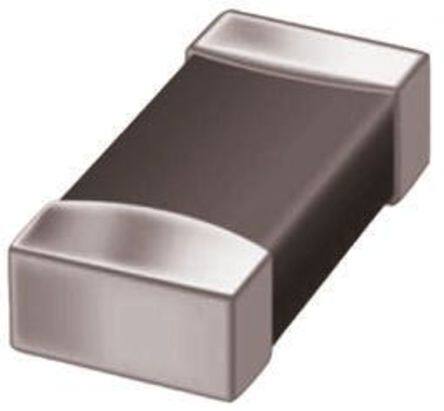

MLV0805E32503T
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Circuit Protection / TVS - Varistors, MOVs
Description
VISHAY - MLV0805E32503T - TVS Varistor, 25 V, 30 V, MLV Series, 65 V, 0805 [2012 Metric], Multilayer Varistor (MLV)
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.272095
≥1 USD $0.272095
≥10 USD $0.220724
≥100 USD $0.198708
Inventory: 58
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Width 2mm
Length 2mm
Technical
Clamping Current 1A
Varistor Voltage 46V
Varistor Voltage (Typ) 41.5V
Varistor Voltage (Min) 37V
Energy 0.10J
Varistor Voltage (Max) 46V
Capacitance @ Frequency 80pF @ 1MHz
Max Surge Current 30A
Clamping Voltage 65V
Max Voltage Rating (DC) 30V
Terminal Placement DUAL ENDED
Max Voltage Rating (AC) 25V
Number of Circuits 1
Case Code (Imperial) 0805
Case Code (Metric) 2012
Voltage - Rated AC 25V
Resistor Type VARISTOR
Depth 1.25mm
Technology METAL OXIDE FILM
Packing Method TR, PAPER
Voltage - Rated DC 30V
Capacitance 80pF
HTS Code 8533.40.40.00
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Terminal Shape WRAPAROUND
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 11 Weeks
