0257025.L
RoHS
RoHS compliant
RoHS compliantPackage Blade, ATO/ATC
Category Circuit Protection / Fuses
Description
FUSE AUTO 25A 32VDC BLADE 50 PC
PDF
/
Buying Options
Total Price: USD $1.05
Unit Price: USD $1.046381
≥1 USD $1.046381
≥200 USD $0.417502
≥500 USD $0.404373
≥1000 USD $0.396496
Inventory: 7625
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 12.192mm
Technical
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.00252Ohm
Melting I2t 1080
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Response Time Fast Blow
Approval Agency cULus
Current Rating 25A
Reach Compliance Code unknown
Depth 5.1mm
Voltage - Rated DC 32V
Color Clear
Resistance 2.52mOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete

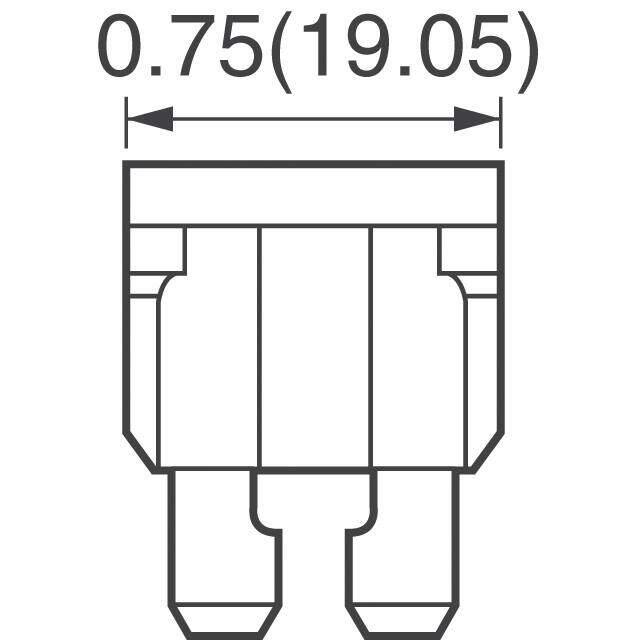

Size / Dimension 0.750Lx0.200W x 0.480 H 19.05mmx5.08mmx12.19mm
Series ATO?
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Package / Case Blade, ATO/ATC
Mounting Type Holder
Mount Holder, Socket
