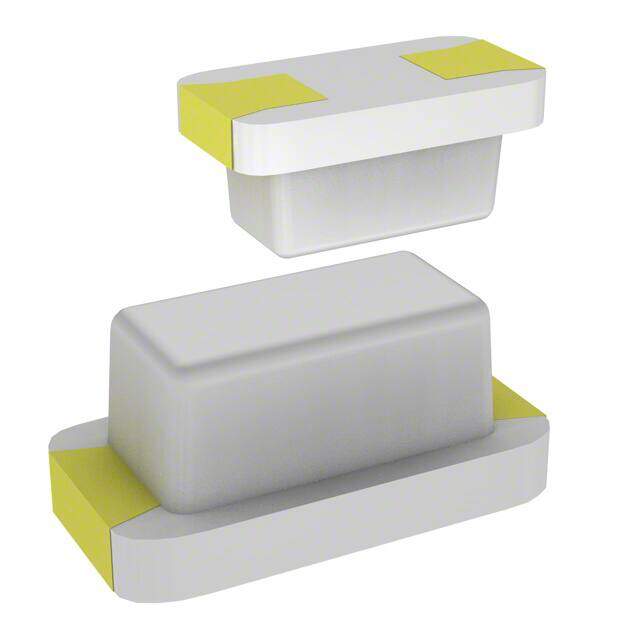

3414.0113.26
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Circuit Protection / Fuses
Description
FUSE BOARD MNT 500MA 32VDC 0402
PDF
/
Buying Options
Total Price: USD $0.53
Unit Price: USD $0.528
≥1 USD $0.528
≥10 USD $0.41448
≥100 USD $0.31152
≥500 USD $0.245309
Inventory: 996
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 475μm
Technical
Pre-arcing Time-Min 5000ms
Blow Characteristic SUPER FAST
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.124Ohm
Melting I2t 0.004
Breaking Capacity @ Rated Voltage 35A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Fast Blow
Physical Dimension 1.05mm x 0.55mm x 0.48mm
Body Breadth 0.55 mm
Body Length or Diameter 1.05mm
Approval Agency cURus
Reference Standard CCC; CSA; CUL; UL
Current Rating 500mA
Packing Method BLISTER TAPE AND REEL
Voltage - Rated DC 32V
HTS Code 8536.10.00.40
Voltage - Rated 32V
Resistance 124mOhm
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 0.040Lx0.020W x 0.019 H 1.00mmx0.50mmx0.48mm
Series USF 0402
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Weight 2.012816mg
Terminal Shape WRAPAROUND
Package / Case 0402 (1005 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Supply Chain
Factory Lead Time 28 Weeks
