0257015.PXPV
RoHS
RoHS compliant
RoHS compliantPackage Blade, ATO/ATC
Category Circuit Protection / Fuses
Description

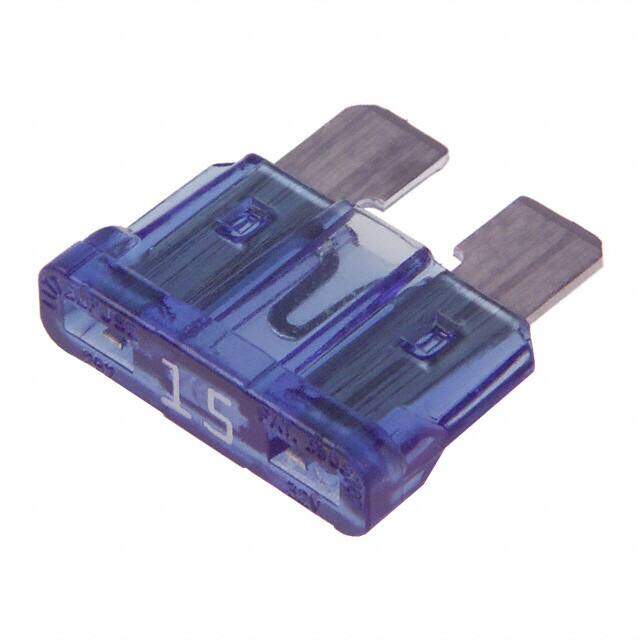

FUSE AUTO 15A 32VDC BLADE
PDF
/
Buying Options
Total Price: USD $0.05
Unit Price: USD $0.046636
≥1 USD $0.046636
Inventory: 1250
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 12.19mm
Technical
Fuse Class ATO
Trip Time or Delay 360000 s
Fuse Current 15A
Joule Integral-Nom 340 J
Circuit Protection Type ELECTRIC FUSE
DC Cold Resistance 0.0048Ohm
Melting I2t 340
Breaking Capacity @ Rated Voltage 1kA
Fuse Type Automotive
Response Time Fast Blow
Working Voltage 32V
Body Length or Diameter 19.05mm
Voltage - Rated AC 32V
Reference Standard UL
Current Rating 15A
Depth 5.08mm
Voltage - Rated DC 32V
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Terminal Finish Tin/Copper (Sn/Cu)
Resistance 4.8mOhm
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e2
Size / Dimension 0.750Lx0.200W x 0.480 H 19.05mmx5.08mmx12.19mm
Series ATO?
Packaging Bulk
Physical
Body Material Thermoplastic
Number of Pins 2
Terminal Shape TAB/BLADE
Package / Case Blade, ATO/ATC
Mounting Type Holder
Mount Holder, Socket
