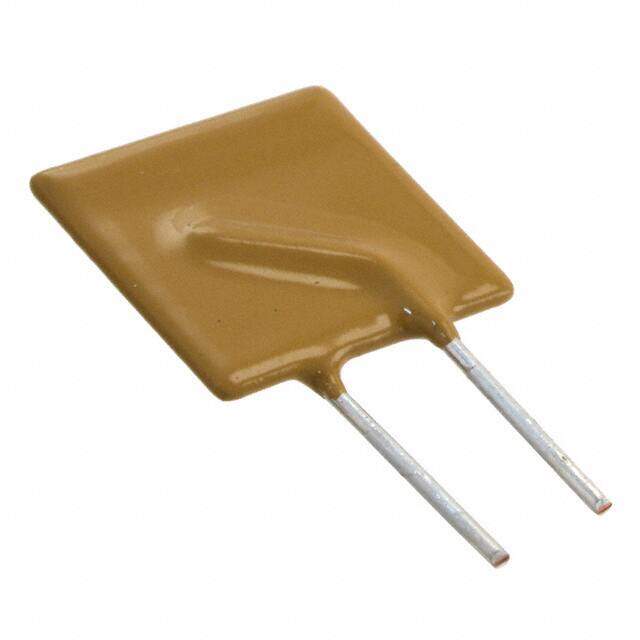

MF-RX185/72-AP
RoHS
RoHS compliant
RoHS compliantPackage Radial, Disc
Category Circuit Protection / PTC Resettable Fuses
Description
PTC RESET FUSE 72V 1.85A RADIAL
PDF
/
Inventory: 4040
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Disc
Terminal Shape WIRE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Box (TB)
Published 2012
Series Multifuse?, MF-RX/72
Size / Dimension 0.701Lx0.122W 17.80mmx3.10mm
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Radial
ECCN Code EAR99
Type Polymeric
Resistance 120mOhm
Terminal Finish Tin (Sn)
HTS Code 8533.40.80.70
Packing Method AMMO PACK
Base Part Number MF-RX
Approval Agency cURus, TUV
Lead Pitch 5.1mm
Lead Spacing 0.201 5.10mm
Lead Diameter 810 μm
Max Current Rating 40A
Power Dissipation 2.1W
Current - Max 40A
Hold Current 1.85A
Thermistor Application OVERLOAD PROTECTION
Voltage - Max 72V
Time to Trip 12.6s
Resistance - Initial (Ri) (Min) 80mOhm
Resistance - Post Trip (R1) (Max) 190mOhm
Trip Current 3.7A
Dimensions
Height Seated (Max) 0.902 22.90mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
