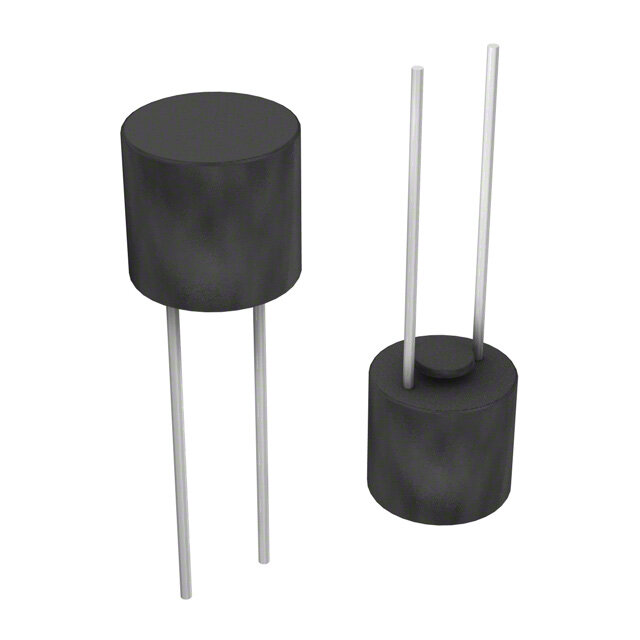

SR-5H-3.15A-AP
RoHS
RoHS compliant
RoHS compliantPackage Radial, Can, Vertical
Category Circuit Protection / Fuses
Description
FUSE BRD MNT 3.15A 300VAC RADIAL
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.810579
≥1 USD $0.810579
≥10 USD $0.533645
≥100 USD $0.0855
≥500 USD $0.08265
≥1000 USD $0.08075
Inventory: 10002
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
DC Cold Resistance 0.018Ohms
Melting I2t 57
Breaking Capacity @ Rated Voltage 100A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Approval Agency CCC, cULus, KC-MARK, PSE, SEMKO, VDE
Voltage - Rated AC 300V
Current Rating (Amps) 3.15A
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.335Dia x 0.362 H 8.50mmx9.20mm
Series SR-5H
Packaging Tape & Box (TB)
Operating Temperature -40°C~85°C
Physical
Package / Case Radial, Can, Vertical
Mounting Type Through Hole
Supply Chain
Factory Lead Time 13 Weeks
