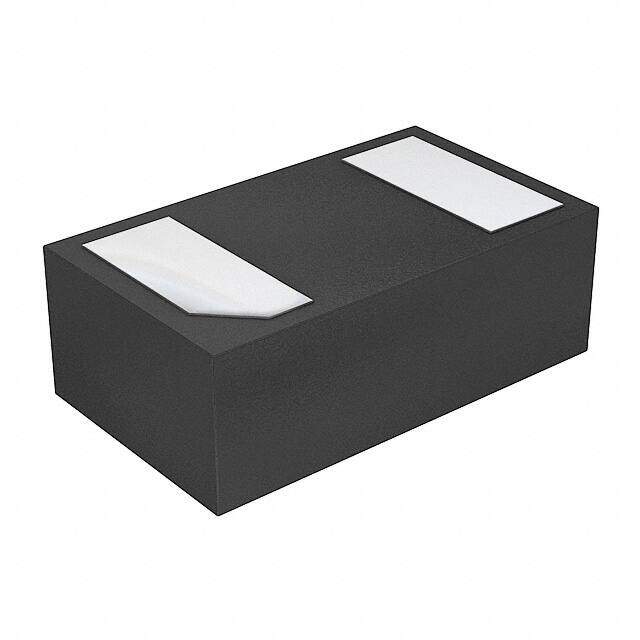

SP0402B-ELC-01ETG
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1006 Metric)
Category Circuit Protection / TVS - Diodes
Description
1 Ch 22Kv 5V Tvs Diode Array 0402 Dfn / Tr Rohs Compliant: Yes
PDF
/
Buying Options
Total Price: USD $0.09
Unit Price: USD $0.090094
≥1 USD $0.090094
Inventory: 340068
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0402 (1006 Metric)
Surface Mount YES
Diode Element Material SILICON
Technical
Operating Temperature -30°C~85°C TA
Packaging Tape & Reel (TR)
Published 2016
Series SPA?
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Zener
Applications General Purpose
Additional Feature ULTRA LOW CAPACITANCE
Technology AVALANCHE
Terminal Position BOTTOM
JESD-30 Code R-PBCC-N2
Number of Elements 1
Polarity BIDIRECTIONAL
Configuration SINGLE
Power Line Protection No
Voltage - Breakdown (Min) 9.6V Typ
Current - Peak Pulse (10/1000μs) 2.5A 8/20μs
Voltage - Clamping (Max) @ Ipp 14V Typ
Voltage - Reverse Standoff (Typ) 7V
Bidirectional Channels 1
Rep Pk Reverse Voltage-Max 7V
Capacitance @ Frequency 0.15pF @ 1MHz
Compliance
RoHS Status ROHS3 Compliant
