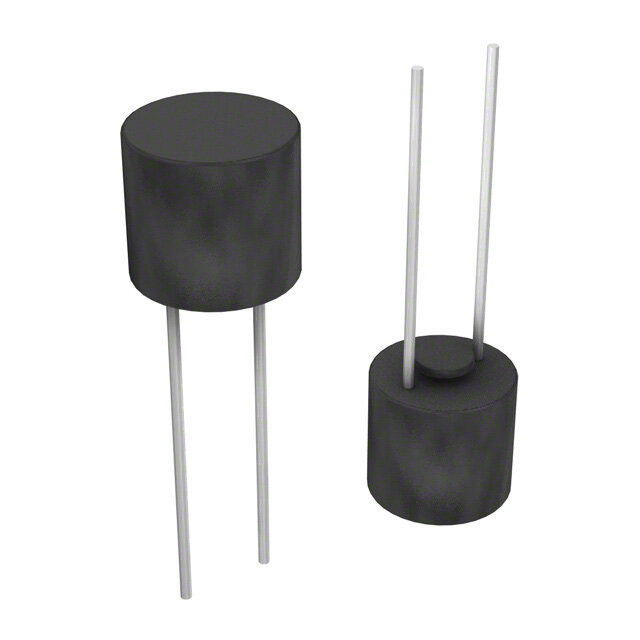

SR-5H-2.5A-BK image
Favorite
SR-5H-2.5A-BK image
Favorite
RoHS
RoHS RoHS compliant
Package Radial, Can, Vertical
Category Circuit Protection / Fuses
Description FUSE BOARD MOUNT 2.5A 300VAC RAD
PDF
/
Inventory: 5165
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Length 8.6mm
Height 9.1948mm

Technical

Fuse Current 2.5A
DC Cold Resistance 0.025Ohms
Melting I2t 45
Wire/Cable Diameter 600 μm
Breaking Capacity @ Rated Voltage 100A
Fuse Type Board Mount (Cartridge Style Excluded)
Response Time Slow Blow
Max Voltage Rating (AC) 250V
Approval Agency CCC, cULus, KC-MARK, PSE, SEMKO, VDE
Voltage - Rated AC 250V
Current Rating 2.5A
Current Rating (Amps) 2.5A
Voltage - Rated 300V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Resistance 25mOhm
Termination Radial
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.335Dia x 0.362 H 8.50mmx9.20mm
Series SR-5H
Packaging Bulk
Operating Temperature -40°C~85°C

Physical

Body Material Plastic
Weight 453.59237mg
Number of Pins 2
Package / Case Radial, Can, Vertical
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
